How can I get a price quote for FESTO MFH-5/3B-D-1-C-EX?

You can request a fast quote for FESTO MFH-5/3B-D-1-C-EX from Yılsa Engineering. Reference part number CEY-937FC782015C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MFH-5/3B-D-1-C-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MFH-5/3B-D-1-C-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MFH-5/3B-D-1-C-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

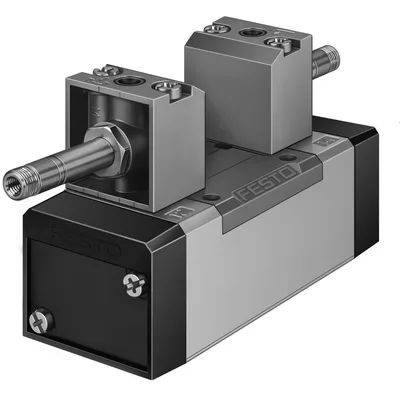

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO MFH-5/3B-D-1-C-EX

Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible. Extensive range of electrical connection options. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Also available as a valve terminal

FESTOMFR # MFH-5/3B-D-1-C-EXSKU # CEY-937FC782015C

Valve function5/3-way, pressurised

Type of actuationElectrical

Construction width42

pneumatic working portSub-base size 1 to ISO 5599-1, G1/4

Operating pressure0.3, 1

Operating pressure3, 10

Have questions?Chat on WhatsApp

About This Product

FESTO MFH-5/3B-D-1-C-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3-way, pressurised

Type of actuationElectrical

Construction width42

Standard nominal flow rate (standardised to DIN 1343)1200

pneumatic working portSub-base size 1 to ISO 5599-1, G1/4

Operating voltageVia solenoid coil, must be ordered separately

Operating pressure0.3, 1

Operating pressure3, 10

DesignPiston gate valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T105°C Db

Explosion ambient temperature-5°C <= Ta <= +40°C

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

Degree of protectionIP65

Nominal size8

Grid dimension43

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideDetenting via accessory, Non-detenting

ISO code158

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991083

lapOverlap

Suitability for vacuumNo

Switching time off36

Switching time on18

Max. positive test pulse with 0 signal2200

Max. negative test pulse with 1 signal3700

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 40

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 40

Product weight520

Electrical connectionVia F coil, to be ordered separately

Type of mountingOn sub-base, With through-hole

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pilot air port 12Sub-base size 1 to ISO 5599-1

Pilot air port 14Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 1 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast aluminium

Accessories 13

Genuine accessories that can be used with the FESTO MFH-5/3B-D-1-C-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MSFG-24-EX	Solenoid coil · Electrical accessories
MSFW-24-50/60-EX	Solenoid coil · Electrical accessories
MSFW-110-50/60-EX	Solenoid coil · Electrical accessories
MSFW-230-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-10-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-20-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-5-EX4-M	Solenoid coil · Electrical accessories
