How can I get a price quote for FESTO GRO-QS-4?

You can request a fast quote for FESTO GRO-QS-4 from Yılsa Engineering. Reference part number CEY-937FC7821EB7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO GRO-QS-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO GRO-QS-4 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO GRO-QS-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

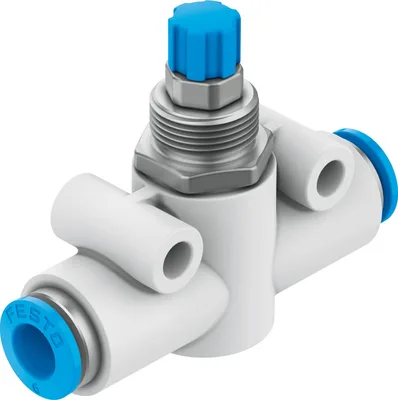

FESTO GRO-QS-4

Throttle valve. Flow control valve, flow control at both ends. In-line flow control valve. Connections: push-in connector at both ends. Connections: in-line, Y-shape. Polymer design

FESTOMFR # GRO-QS-4SKU # CEY-937FC7821EB7

Valve functionFlow control function

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2QS-4

Adjustment componentKnurled screw

Type of mountingWith through-hole, With accessories

Operating pressure0, 10

Have questions?Chat on WhatsApp

About This Product

Throttle valve. Flow control valve, flow control at both ends. In-line flow control valve. Connections: push-in connector at both ends. Connections: in-line, Y-shape. Polymer design

FESTO GRO-QS-4

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionFlow control function

Pneumatic connection, port 1QS-4

Pneumatic connection, port 2QS-4

Adjustment componentKnurled screw

Type of mountingWith through-hole, With accessories

Standard nominal flow rate in flow control direction110

Operating pressure0, 10

Ambient temperature-10, 60

Material housingReinforced PA

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Mounting positionAny

Symbol00991454

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Product weight12

Note on materialsRoHS compliant

Material sealsNBR

Material release ringPOM

Material knurled headReinforced PA

Material adjusting screwHigh-alloy steel

Accessories 74

Genuine accessories that can be used with the FESTO GRO-QS-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GRK-M5	Cover cap · General accessories
GRM-M5	Hex nut · General accessories
PAN-V0-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SI	Plastic tubing · Tubing
PAN-4X0,75-SI	Plastic tubing · Tubing
PUN-4X0,75-BL	Plastic tubing · Tubing
PUN-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-RT	Plastic tubing · Tubing
PUN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-GN	Plastic tubing · Tubing
PUN-CM-4-SW	Plastic tubing · Tubing
PLN-4X0,75-NT	Plastic tubing · Tubing
PLN-4X0,75-SW	Plastic tubing · Tubing
GR-H-QS-3-4	Retaining bracket · Mounting accessories
PFAN-4X0,75-NT	Plastic tubing · Tubing
PUN-H-4X0,75-NT	Plastic tubing · Tubing
PUN-H-4X0,75-BL	Plastic tubing · Tubing
PUN-H-4X0,75-SW	Plastic tubing · Tubing
PUN-4X0,75-SI-500	Plastic tubing · Tubing
PUN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-R-4X0,75-SI	Heavy-duty tubing · Tubing
PEN-4X0,75-SW	Plastic tubing · Tubing
PEN-4X0,75-NT	Plastic tubing · Tubing
PAN-4X0,75-NT	Plastic tubing · Tubing
PEN-4X0,75-SW-500	Plastic tubing · Tubing
PEN-4X0,75-BL-500	Plastic tubing · Tubing
PEN-4X0,75-SI-500	Plastic tubing · Tubing
PEN-4X0,75-BL	Plastic tubing · Tubing
PEN-4X0,75-SI	Plastic tubing · Tubing
PEN-4X0,75-GN	Plastic tubing · Tubing
PEN-4X0,75-RT	Plastic tubing · Tubing
PEN-4X0,75-GE	Plastic tubing · Tubing
PAN-4X0,75-SI-500	Plastic tubing · Tubing
PAN-4X0,75-BL-500	Plastic tubing · Tubing
PAN-4X0,75-SW-500	Plastic tubing · Tubing
PAN-4X0,75-BL	Plastic tubing · Tubing
PAN-4X0,75-SW	Plastic tubing · Tubing
PAN-4X0,75-GN	Plastic tubing · Tubing
PAN-4X0,75-RT	Plastic tubing · Tubing
PAN-4X0,75-GE	Plastic tubing · Tubing
PUN-4X0,75-SW-500	Plastic tubing · Tubing
PLN-4X0,75-BL	Plastic tubing · Tubing
PLN-4X0,75-SI	Plastic tubing · Tubing
PLN-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-BL-500	Plastic tubing · Tubing
PUN-H-4X0,75-NT-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI-500	Plastic tubing · Tubing
PUN-H-4X0,75-SI	Plastic tubing · Tubing
PUN-H-4X0,75-RT	Plastic tubing · Tubing
PUN-H-4X0,75-GN	Plastic tubing · Tubing
PUN-H-4X0,75-GE	Plastic tubing · Tubing
PUN-V0-4X1-SW-C	Plastic tubing · Tubing
PUN-V0-4X1-BL-C	Plastic tubing · Tubing
PAN-MF-4X0,75-SW	Plastic tubing · Tubing
PAN-MF-4X0,75-SW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-4X0,75-TBL-500	Plastic tubing · Tubing
PUN-H-4X0,75-TSW	Plastic tubing · Tubing
PUN-H-4X0,75-TSW-500	Plastic tubing · Tubing
PUN-H-4X0,75-TRT	Plastic tubing · Tubing
PUN-H-4X0,75-TRT-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGN	Plastic tubing · Tubing
PUN-H-4X0,75-TGN-500	Plastic tubing · Tubing
PUN-H-4X0,75-TGE	Plastic tubing · Tubing
PUN-H-4X0,75-TGE-500	Plastic tubing · Tubing
PTFEN-4X0,5-NT-100	Plastic tubing · Tubing
PUN-H-F-4X0,75-NT	Plastic tubing · Tubing
PUN-H-F-4X0,75-RT	Plastic tubing · Tubing
PUN-H-F-4X0,75-BL	Plastic tubing · Tubing
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubing
PUN-H-F-4X0,75-GN	Plastic tubing · Tubing
PUN-H-F-4X0,75-GE	Plastic tubing · Tubing
PUN-H-F-4X0,75-SW	Plastic tubing · Tubing
