How can I get a price quote for Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA?

You can request a fast quote for Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA from Yılsa Engineering. Reference part number YLSWEKYETYCVYD. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

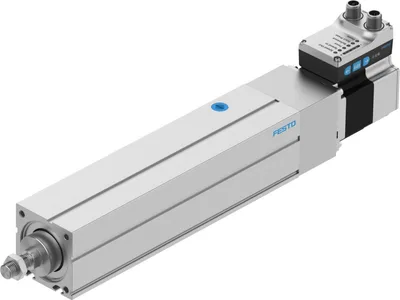

Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA

Electric cylinder unit. Precise positioning thanks to smoothly running ball screw drive. Complete solution consisting of drive mechanics, motor and servo drive. Easy to implement pressing-in and clamping applications for forces up to 900 N. Two control options integrated as standard: digital I/O and IO-Link. Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AASKU # YLSWEKYETYCVYD

Size60

Stroke150

Stroke reserve0

Piston rod threadM12x1.25

Reversing backlash theoretical100

Spindle diameter12

Have questions?Chat on WhatsApp

About This Product

Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size60

Stroke150

Stroke reserve0

Piston rod threadM12x1.25

Reversing backlash theoretical100

Spindle diameter12

Spindle pitch5

Torsional backlash at piston rod +/-1

Mounting positionAny

Piston-rod endMale thread

Type of motorStepper motor

DesignWith ball screw, With integrated drive

Spindle typeBall screw

Symbol00997294

Protection against torque/guideWith plain-bearing guide

ReferencingPositive fixed stop block, Negative fixed stop block, Reference switch

Rotor position sensorAbsolute encoder, single turn

Rotor position sensor, encoder measuring principlemagnetic

Temperature monitoringSwitch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output

Additional functionsBuilt-in end-position sensing

DisplayLED

Ready status indicationLED

Max. acceleration1.5

Max. speed0.09

Speed "Speed press"0.01

Repetition accuracy±0.02 mm

Features of digital logic outputsConfigurable, Not galvanically isolated

Duty cycle100%

Insulation protection classB

Max. current digital logic outputs100

Max. current consumption5300

Max. current consumption, logic0.3

Nominal voltage DC24

Nominal current5.3

Parameterisation interfaceIO-Link®, User interface

Rotor position transducer resolution16

Permissible voltage fluctuations+/- 15 %

Power supply, connection typePlug

power supply, connection systemM12x1, T-coded according to EN 61076-2-111

Power supply, number of pins/wires4

Power supply, connection pattern00995989

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1

Storage temperature-20, 60

Relative air humidityNon-condensing

Degree of protectionIP40

Protection classIII

Ambient temperature0, 50

Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.

Max. moment Mx0

Max. moment My6.4

Max. moment Mz6.4

Max. radial force at drive shaft230

Max. feed force Fx900

Reference value effective load, horizontal120

Reference value effective load, vertical46

Maintenance intervalLifetime lubrication

Moving mass for 0 mm stroke305

Additional moving mass per 10 mm stroke6.5

Product weight3329

Basic weight for 0 mm stroke2294

Additional weight per 10 mm stroke69

Number of digital logic outputs 24 V DC2

Number of digital logic inputs2

Specification logic inputBased on IEC 61131-2, type 1

Working range of logic input24

Features of logic inputConfigurable, Not galvanically isolated

IO-Link, SIO-Mode supportYes

IO-Link, Protocol versionDevice V 1.1

IO-Link, communication modeCOM3 (230.4 kBaud)

IO-Link, Port classA

IO-Link, Number of ports1

IO-Link, Process data length OUT2 bytes

IO-Link, Process data content OUTMove in 1 bit, Move out 1 bit, Quit Error 1 bit, Move intermediate 1 bit

IO-Link, Process data length IN2 bytes

IO-Link, Process data content INState Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit

IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed

IO-Link, Min. cycle time1 ms

IO-Link, Data storage required500

Max. cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation

Switching logic for outputsNPN (negative switching), PNP (positive switching)

Switching logic for inputsNPN (negative switching), PNP (positive switching)

Logic interface, connection typePlug

Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101

Logic interface, number of pins/wires8

Logic interface, plug pattern00992264

Type of mountingWith female thread, With accessories

Note on materialsRoHS compliant

Material housingSmooth-anodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material ball screw nutSteel

Material spindleBearing steel

Accessories 48

Genuine accessories that can be used with the Festo EPCS-BS-60-150-5P-A-ST-M-H1-PLK-AA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CDSU-1	IO-Link® master USB · Electrical accessories
NEBC-M12W8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-B-LE8	Connecting cable · Connecting cables
SGS-M12X1,25	Rod eye · Mounting accessories
NEFC-M12G8-0.3-M12G5-LK	Adapter · Connecting cables
NEBC-M12W8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBL-T12W4-E-2-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBL-T12W4-E-5-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-2-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-5-N-LE4	Connecting cable · Connecting cables
EAHA-P2-60	Adapter kit · Mounting accessories
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Position sensing
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Position sensing
EAPM-L2-SH	Sensor bracket · Position sensing
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Position sensing
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Position sensing
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-5-N-M12G8	Connecting cable · Connecting cables
LBG-40	Clevis foot · Mounting accessories
LNZG-40/50	Trunnion support · Mounting accessories
SNCS-40	Swivel flange · Mounting accessories
EAHS-P2-60	Swivel mounting · Mounting accessories
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
EAHF-L2-45-P	Profile mounting · Cylinder mountings
EAHH-P2-60	Flange mounting · Cylinder mountings
EAHF-L2-45-P-S	Profile mounting · Cylinder mountings
NEBL-T12W4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12W4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBL-T12G4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-B-LE8	Connecting cable · Connecting cables
DARP-M12P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
