How can I get a price quote for Festo NEBC-M12W8-E-2-N-M12G8?

You can request a fast quote for Festo NEBC-M12W8-E-2-N-M12G8 from Yılsa Engineering. Reference part number YLSL0DKKXZJTFZB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBC-M12W8-E-2-N-M12G8 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBC-M12W8-E-2-N-M12G8 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBC-M12W8-E-2-N-M12G8?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

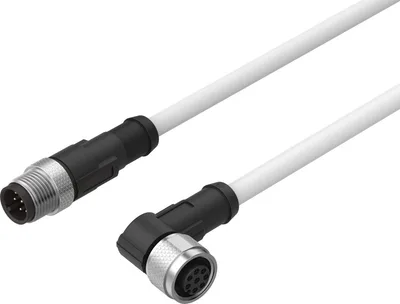

Festo NEBC-M12W8-E-2-N-M12G8

Connecting cable. Variants in easy-to-clean design. Standard variants, variants with shielding or as a hybrid cable. Variants suitable for energy chains. Variants with Ethernet, CANopen, I-Port or RS232

FestoMFR # NEBC-M12W8-E-2-N-M12G8SKU # YLSL0DKKXZJTFZB

Based on standardEN 61076-2-101

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E474609

Cable designationWithout inscription label holder

Product weight112

Electrical connection 1, functionField device side

Have questions?Chat on WhatsApp

About This Product

Festo NEBC-M12W8-E-2-N-M12G8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 61076-2-101

Approvalc UL us - Listed (Oil)

Certificate issuing authorityUL E474609

Cable designationWithout inscription label holder

Product weight112

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 1, number of connections/cores8

Electrical connection 1, used connections/cores8

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00992265

Electrical connection 2, functionControl side

Electrical connection 2, designRound

Electrical connection 2, connection typePlug

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection 2, number of connections/cores8

Electrical connection 2, used connections/cores8

electrical connection 2, type of mountingScrew-type lock

Electrical connection 2, connection pattern00992264

Operational voltage range DC0, 30

Operational voltage range AC0, 30

Current rating at 40° C2

Immunity to surge0.8

ShieldingNo

Cable length2

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable30

Bending radius, moving cable30

Cable diameter6

Cable diameter tolerance±0.2 mm

Cable structure8 x 0.25 mm²

Nominal cross section conductor0.25

Degree of protectionIP65, IP67

Note on degree of protectionIn mounted state

Ambient temperature-25, 90

Ambient temperature with moving cable-25, 90

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Pollution degree3

Corrosion resistance class CRC2 - Moderate corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourSilver-grey

Material housingTPE-U(PUR)

Housing colourBlack

Material screw-type lockNickel-plated die-cast zinc

Material sealsNBR

Material electrical contactBrass

Material insulating sheathPP
