How can I get a price quote for Festo EPCC-BS-25-100-6P-A?

You can request a fast quote for Festo EPCC-BS-25-100-6P-A from Yılsa Engineering. Reference part number YLSZMEAXUUUNCXV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EPCC-BS-25-100-6P-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EPCC-BS-25-100-6P-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EPCC-BS-25-100-6P-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

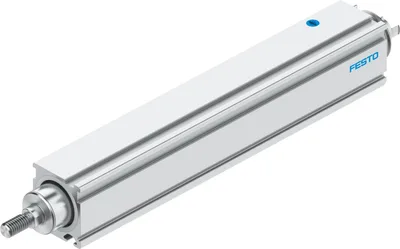

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo EPCC-BS-25-100-6P-A

Electric cylinder. Excellent price-performance ratio. Flexible: wide range of mounting options for the motor. Dynamic: lower internal friction. Non-rotating piston rod with plain-bearing guide, stroke up to 500 mm. Weight-optimised design - ideal for handling systems. Unique: "One-size-down" assembly system for the best use of space in combination with toothed belt/spindle axis ELGC. Variants recommended for production systems for manufacturing lithium-ion batteries. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EPCC-BS-25-100-6P-ASKU # YLSZMEAXUUUNCXV

Size25

Stroke100

Stroke reserve0

Piston rod threadM6

Reversing backlash theoretical100

Spindle diameter6

Have questions?Chat on WhatsApp

About This Product

Festo EPCC-BS-25-100-6P-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size25

Stroke100

Stroke reserve0

Piston rod threadM6

Reversing backlash theoretical100

Spindle diameter6

Spindle pitch6

Torsional backlash at piston rod +/-1

Mounting positionAny

Piston-rod endMale thread

Type of motorStepper motor, Servo motor

Position detectionVia proximity switch

DesignWith ball screw

Spindle typeBall screw

Symbol00991941

Protection against torque/guideWith plain-bearing guide

Max. acceleration15

Max. rotational speed4000

Max. speed0.4

Max. homing speed0.01

Repetition accuracy±0.02 mm

Duty cycle100%

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1

Storage temperature-20, 60

Relative air humidityNon-condensing

Degree of protectionIP40

Ambient temperature0, 60

Impact energy in end positions0.0012

Max. drive torque0.1

Max. moment Mx0

Max. moment My0.6

Max. moment Mz0.6

Max. radial force at drive shaft30

Max. feed force Fx75

Frictional torque independent of load0.055

Reference value effective load, horizontal12

Reference value effective load, vertical6

Mass moment of inertia JH per metre of stroke0.0095

Mass moment of inertia JL per kg of working load0.0091

Mass moment of inertia JO0.0014

Maintenance intervalLifetime lubrication

Moving mass for 0 mm stroke53

Additional moving mass per 10 mm stroke2.6

Basic weight for 0 mm stroke132

Additional weight per 10 mm stroke13

Type of mountingWith accessories

Note on materialsRoHS compliant

Material housingSmooth-anodised

Material piston rodHigh-alloy stainless steel

Material ball screw nutSteel

Material spindleBearing steel

Accessories 39

Genuine accessories that can be used with the Festo EPCC-BS-25-100-6P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAPM-L2-SH	Sensor bracket · Position sensing
SGS-M6	Rod eye · Mounting accessories
LBN-12/16	Clevis foot · Mounting accessories
SNCL-16	Swivel flange · Mounting accessories
EAHA-P2-25	Adapter kit · Mounting accessories
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Position sensing
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Position sensing
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
EMMS-ST-28-L-SE	Stepper motor · Motors
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Position sensing
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Position sensing
LNZG-16	Trunnion support · Mounting accessories
EAMM-A-V20-28A	Axial kit · Mounting accessories
EAMM-U-30-V20-28A-44	Parallel kit · Mounting accessories
EAHS-P2-25	Swivel mounting · Mounting accessories
GASA-MIE-CTR-12M-1	AX Industrial App · Digital services
GASA-MIE-CTR-12M-10	AX Industrial App · Digital services
GASA-MIE-CTR-12M-100	AX Industrial App · Digital services
GASA-MIE-CTR-12M-50	AX Industrial App · Digital services
FK-M6	Self-aligning rod coupler · Piston rod attachments
SG-M6	Rod clevis · Piston rod attachments
SNCL-16-R3	Swivel flange · Cylinder mountings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensor for mounting kit
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Cylinder sensor for mounting kit
EMMS-ST-28-L-SEB	Stepper motor · Electrical accessories
EMMS-ST-28-L-SB	Stepper motor · Electrical accessories
EMMS-ST-28-L-S	Stepper motor · Electrical accessories
EAHF-L2-25-P	Profile mounting · Cylinder mountings
EAHF-L2-25-P-S	Profile mounting · Cylinder mountings
EAMM-A-V20-28AA	Axial kit · Mounting accessories
EAMM-U-30-V20-28AA-44	Parallel kit · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensor for mounting kit
ABAN-3-3M3-30-M-P2	Slot nut · Mounting accessories
DARP-M6-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
