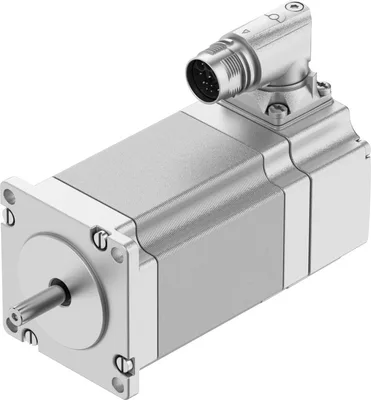

Festo EMMT-ST-57-L-RM

Stepper motor. Motor in IP65 (IP40 for motor shaft). Absolute encoder, single or multiturn (without battery). 3 flange sizes MH: 0.25 Nm ... 9.4 Nm. Optionally with holding brake. Automatic motor detection via 'electronic rating plate' with motor correction table. Can be used in applications down to -15 °C. OCP cable (one cable plug) with solid M17 plug, can be rotated 310°. Cable length up to 25 m. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMT-ST-57-L-RMSKU # YLSGKP12Y9D1FC

Ambient temperature-15, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Storage temperature-20, 70

Relative air humidityNon-condensing

Conforms to standardIEC 60034

Have questions?Chat on WhatsApp

About This Product

Festo EMMT-ST-57-L-RM

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-15, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-20, 70

Relative air humidityNon-condensing

Conforms to standardIEC 60034

Temperature class as per EN 60034-1B

Max. winding temperature130

Rating class as per EN 60034-1S1

Temperature monitoringDigital Motor temp. via BiSS-C

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP40

Note on degree of protectionIP40 motor shaft, IP65 for motor housing, incl. connection technology

Interface code, motor out57A

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM17x0.75

Electrical connection 1, number of connections/cores12

Electrical connection 1, connection pattern00997532

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E342973

Nominal operating voltage DC48

Number of pole pairs50

Motor holding torque1.86

Nominal torque1.64

Peak torque2.1

Nominal rotary speed500

Max. rotational speed1500

Max. mechanical speed8000

Stepper angle for complete step1.8

Stepping angle tolerance±5%

Nominal power rating of motor86

Continuous stall current6.1

Nominal motor current5.2

Peak current8

Motor constant0.32

Voltage constant, phase22.6

Phase winding resistance0.26

Phase winding inductance0.95

Winding longitudinal inductivity Ld (phase)1.75

Winding cross inductivity Lq (phase)0.95

Electric time constant3.7

Thermal time constant30

Thermal resistance1.3

Measuring flange200 x 200 x 15 mm, steel

Total mass moment of inertia of output0.486

Product weight1260

Permissible axial shaft load15

Permissible radial shaft load75

Rotor position sensorAbsolute encoder, multi-turn

rotor position sensor, manufacturer designationKCD-BC33B-1617-U09C-JAQ-009

rotor position sensor, absolute detectable revolutions65536

Rotor position encoder interfaceBiSS-C

Rotor position sensor, encoder measuring principlemagnetic

rotor position sensor, DC operating voltage14

rotor position sensor, DC operating voltage range4.75, 15

Rotor pos. enc., sin/cosin p/r2

rotor position sensor, position values per revolution131072

Rotor position transducer resolution17

rotor position sensor, system accuracy of angle measurement-310, 310

Mean time to failure (MTTF), subcomponent20 years, rotor position encoder

Accessories 62

Genuine accessories that can be used with the Festo EMMT-ST-57-L-RM motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CMMT-ST-C8-1C-MP-S0	Servo drive · Motor controller
NEBM-M17G12-EH-5-Q6N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-2.5-Q6N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-10-Q6N-LE12	Motor cable · Connecting cables
EMGA-60-P-G3-SST-57	Gear unit · Gear unit
EMGA-60-P-G5-SST-57	Gear unit · Gear unit
EAMM-U-60-D32-57A-91	Parallel kit · Mounting accessories
EAMM-U-60-D40-57A-91	Parallel kit · Mounting accessories
EAMM-U-60-D40-57A-91-S1	Parallel kit · Mounting accessories
EAMM-U-60-D32-57A-91-S1	Parallel kit · Mounting accessories
EAMM-U-60-S38-57A-91	Parallel kit · Mounting accessories
EAMM-U-60-S48-57A-91	Parallel kit · Mounting accessories
EAMM-A-V32-57A	Axial kit · Mounting accessories
EAMM-A-T42-57A	Axial kit · Mounting accessories
EAMM-A-M43-60G	Axial kit · Mounting accessories
EAMM-A-D40-57A-S1	Axial kit · Mounting accessories
EAMM-A-L27-60G	Axial kit · Mounting accessories
EAMM-A-M48-60G	Axial kit · Mounting accessories
EAMM-A-T46-57A	Axial kit · Mounting accessories
EAMM-A-L38-60G-G2	Axial kit · Mounting accessories
EAMM-A-L38-57A-G2	Axial kit · Mounting accessories
EAMM-A-N38-60G-G2	Axial kit · Mounting accessories
EAMM-A-N48-60G-G2	Axial kit · Mounting accessories
EAMM-A-L48-60G-G2	Axial kit · Mounting accessories
EAMM-A-S48-60G-G3	Axial kit · Mounting accessories
EAMM-A-D50-60G-G2	Axial kit · Mounting accessories
EAMM-A-D50-60G-S1-G2	Axial kit · Mounting accessories
EAMM-A-D60-60G-G3	Axial kit · Mounting accessories
EAMM-A-D60-60G-S1-G3	Axial kit · Mounting accessories
EAMM-A-S60-60G	Axial kit · Mounting accessories
EAMM-U-86-S60-60G-177	Parallel kit · Mounting accessories
EAMM-A-D32-60G	Axial kit · Mounting accessories
EAMM-A-D32-60G-S1	Axial kit · Mounting accessories
EAMM-A-D40-60G	Axial kit · Mounting accessories
EAMM-A-D40-60G-S1	Axial kit · Mounting accessories
EAMM-A-D60-60G-S1	Axial kit · Mounting accessories
EAMM-A-D60-60G-G2	Axial kit · Mounting accessories
EAMM-A-S62-60G-G2	Axial kit · Mounting accessories
EAMM-A-S48-57A-G2	Axial kit · Mounting accessories
EAMM-A-S38-57A-G2	Axial kit · Mounting accessories
EAMM-A-D40-57A	Axial kit · Mounting accessories
EAMM-A-D32-57A	Axial kit · Mounting accessories
EAMF-A-48A-60G/H	Motor flange · Mounting accessories
EAMM-A-L27-57A	Axial kit · Mounting accessories
EAMF-A-L27-57A	Motor flange · Mounting accessories
EAMM-A-P6-38A-57A	Axial kit · Mounting accessories
EAMD-16-15-6.35-8X10	Coupling · Mounting accessories
EAHM-L2-M5-40	Screw kit · Mounting accessories
EAMM-A-R38-57A	Axial kit · Mounting accessories
EAMM-A-R27-57A	Axial kit · Mounting accessories
EAMM-A-X48-57A	Axial kit · Mounting accessories
EAMM-A-R38-60G	Axial kit · Mounting accessories
EAMM-A-R48-60G	Axial kit · Mounting accessories
EAMM-A-P8-38A-57A	Axial kit · Mounting accessories
EMGA-60-P-G8-SST-57	Gear unit · Mounting accessories
EMGA-60-P-G12-SST-57	Gear unit · Mounting accessories
NEBM-LX/M17-	Motor cable · Electrical accessories
NEAM-MF-M17	Mounting flange · Electrical accessories
NEBM-M17G12-EH-2.5-Q7N-LE12	Motor cable · Electrical accessories
NEBM-M17G12-EH-5-Q7N-LE12	Motor cable · Electrical accessories
NEBM-M17G12-EH-7.5-Q7N-LE12	Motor cable · Electrical accessories
NEBM-M17G12-EH-10-Q7N-LE12	Motor cable · Electrical accessories
