How can I get a price quote for Festo CMMT-ST-C8-1C-MP-S0?

You can request a fast quote for Festo CMMT-ST-C8-1C-MP-S0 from Yılsa Engineering. Reference part number YLSTICPEI2O4F4O. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CMMT-ST-C8-1C-MP-S0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CMMT-ST-C8-1C-MP-S0 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CMMT-ST-C8-1C-MP-S0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

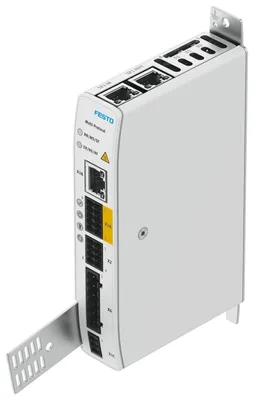

Festo CMMT-ST-C8-1C-MP-S0

Servo drive. Space-optimised servo drive for operating stepper motors, brushless DC motors (BLDC motors) and EC motors. Ideal for positioning tasks and point-to-point and interpolating motion solutions. The new multiprotocol variant (CMMT-...-MP) has all fieldbuses (PROFINET, EtherCAT®, EtherNet/IP, Modbus®) integrated in one servo drive hardware. A servo drive for direct fieldbus integration for controllers from the major manufacturers with associated function blocks. Integrated safety functions STO (safe torque off) - Cat 3, Ple / SIL 3 / SILCL 3 ensure safe operation. For extremely economical applications with low power requirements of 150 W at 24 V DC, 300 W at 48 V DC and a peak power of 800W. Energy recovery and energy management ensure sustainable operation and increased efficiency. Auto-tuning makes commissioning of rotary and linear motions easier. Very efficient for tasks with low power requirements. 50% more compact than the smallest servo drive CMMT-AS. Ideal for use with stepper motors such as the EMMB-ST and EMMT-ST, BLDC motors and EC motors. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # CMMT-ST-C8-1C-MP-S0SKU # YLSTICPEI2O4F4O

Type of mountingvia DIN rail

Mounting positionOpen convection, Vertical

Product weight350

DisplayGreen/yellow/red LED

ApprovalRCM, c UL us - Listed (Oil)

KC markKC-EMV

Have questions?Chat on WhatsApp

About This Product

Festo CMMT-ST-C8-1C-MP-S0

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Type of mountingvia DIN rail

Mounting positionOpen convection, Vertical

Product weight350

DisplayGreen/yellow/red LED

ApprovalRCM, c UL us - Listed (Oil)

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK regulations for machines, To UK RoHS instructions

Certificate issuing authorityTÜV Rheinland UK 01/205U/5696.01/24, TÜV Rheinland 01/205/5696.01/24, UL E331130

Storage temperature-25, 55

Ambient temperature0, 50

Note on ambient temperatureObserve the derating regarding the mounting clearance and output current.

Relative air humidity5 - 90%, Non-condensing

Max. installation height2000

Degree of protectionIP20

Protection classIII

Overvoltage categoryI

Pollution degree2

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364 zone III

Nominal voltage load voltage DC24, 48

Permissible range for load power supply-15% / +15%

Max. intermediate circuit voltage DC60

Brake resistor, external6

Max. continuous output of the external braking resistor (IEC)490

Nominal voltage for logic power supply DC24

Permissible range for logic voltage±15%

Current consumption of logic power supply without clamping brake1

Current consumption for logic supply with parking brake2

Output voltage class AC0 V up to input voltage

Nominal output current8

Nominal current per phase, effective8

Peak current per phase, effective20

Max. peak current duration3

Controller nominal output300

Maximum output800

Output frequency0, 20000

Max. length of motor cable without external mains filter25

Max. output current of holding brake1

Max. voltage drop from logic supply to brake output1

Controller operating modeCascade controller, P position controller, PI speed controller, PI current controller for F or M, Profile operation with record and direct mode, Interpolated mode via fieldbus, Synchronised operating

Operating modeField-oriented closed-loop control, Position resolution 24 bit/rev., Real-time data acquisition, 2x Input capture (x, v, F), 2x Output trigger (x, v, F), 1x position encoder input, Sampling rate 16 or

Adjustable current reductionabout software

Protective functionI²t monitoring, Temperature monitoring, Current monitoring, Voltage failure detection, Following error monitoring, Software end-position detection

Nominal current settingabout software

Ethernet interface, functionParameterisation and commissioning

Ethernet interface, protocolTCP/IP

Field bus, protocolEtherCAT®, EtherNet/IP, PROFINET IRT

Fieldbus interface, functionBus connection incoming/outgoing, EtherCAT® slave, PROFINET slave, Fieldbus

Fieldbus linkEtherCAT®, EtherNet/IP, Modbus/TCP, PROFINET

Communication profileCiA402, CoE (CANopen over EtherCAT), EoE (Ethernet over EtherCAT), FoE (File over EtherCAT), PROFIdrive

Process interfacingI/O mode for 256 positioning records, Interpolated mode CSP, Interpolated mode CST, Interpolated mode CSV

Field bus interface, transmission rate100 Mbit/s

Field bus, connection type2x socket

Field bus, connection systemRJ45

Encoder interface, functionBiSS-C, Incremental encoder

Number of digital logic inputs6

Switching logic for inputsPNP (positive switching)

Features of logic inputFreely configurable in some cases, Safety inputs in some cases, Not galvanically isolated

Specification logic inputBased on IEC 61131-2, type 3

Working range of logic input-3, 30

Number of high-speed logic inputs2

Time resolution of high-speed logic inputs1

Number of digital logic outputs 24 V DC2

Switching logic for outputsPNP (positive switching)

Features of digital logic outputsNot galvanically isolated

Max. current digital logic outputs100

Number of high-speed switching outputs2

Time resolution of high-speed switching outputs1

Number of floating switching outputs1

Max. current of the floating switching outputs100

Safety functionSafe torque off (STO), Safe stop 1 time controlled (SS1-t)

Safety Integrity Level (SIL)STO/SIL 2/SILCL 2 (EC motor without diagnostics), STO/SIL 3/SILCL 3 (stepper motor/EC motor with diagnostics)

Performance Level (PL)STO/Cat. 3, PLd (EC motor without diagnostics), STO/Cat. 3, PLe (stepper motor/EC motor with diagnostics)

Diagnostic coverageSTO / medium (EC motor without diagnostics), STO / medium (stepper motor), STO / low (EC motor without diagnostics)

SFF Safe Failure Fraction99

Hardware fault tolerance1

Proof test intervalSTO/20 a (stepper motor/EC motor without diagnostics), STO: 0.25 a (EC motor with diagnostics)

Number of safe 2-pin inputs1

Number of diagnostic outputs1

Accessories 25

Genuine accessories that can be used with the Festo CMMT-ST-C8-1C-MP-S0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-SM12G8-E-2.5-Q5-LE6	Motor cable · Connecting cables
NEBM-M12G8-E-2.5-LE8	Encoder cable · Connecting cables
NEBM-SM12G8-E-5-Q5-LE6	Motor cable · Connecting cables
NEBM-M12G8-E-5-LE8	Encoder cable · Connecting cables
NEBM-M12G8-E-10-LE8	Encoder cable · Connecting cables
NEBC-R3G8-KS-0.2-N-S-R3G8-ET	Connecting cable · Connecting cables
EMMT-ST-87-S-RS	Stepper motor · Motors
EMMT-ST-57-M-RS	Stepper motor · Motors
NEBM-SM12G8-E-10-Q5-LE6	Motor cable · Connecting cables
EMMT-ST-42-L-RS	Stepper motor · Motors
EMMS-ST-28-L-SE	Stepper motor · Motors
CACR-LE2-6-W60-V	Braking resistor · Electrical accessories
NEBM-M17G12-EH-5-Q6N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-2.5-Q6N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-10-Q6N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-2.5-Q7N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-5-Q7N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-10-Q7N-LE12	Motor cable · Connecting cables
GASA-DA-CTR-1000	AX Industrial App · Digital services
GASA-DA-CTR-10	AX Industrial App · Digital services
GASA-DA-CTR-100	AX Industrial App · Digital services
GASA-MIE-CTR-12M-1	AX Industrial App · Digital services
GASA-MIE-CTR-12M-10	AX Industrial App · Digital services
GASA-MIE-CTR-12M-100	AX Industrial App · Digital services
GASA-MIE-CTR-12M-50	AX Industrial App · Digital services
