How can I get a price quote for Festo NEBM-M23G15-EH- -Q10N-R3LEG14?

You can request a fast quote for Festo NEBM-M23G15-EH- -Q10N-R3LEG14 from Yılsa Engineering. Reference part number YLS6VIETIBDX7X. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NEBM-M23G15-EH- -Q10N-R3LEG14 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NEBM-M23G15-EH- -Q10N-R3LEG14 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NEBM-M23G15-EH- -Q10N-R3LEG14?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

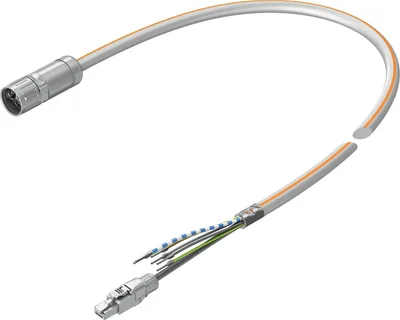

Festo NEBM-M23G15-EH- -Q10N-R3LEG14

Motor cable. For stepper and servo motors. For motor controllers. For servo drive. Can be used in a wide temperature range. Suitable for energy chains. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # NEBM-M23G15-EH- -Q10N-R3LEG14SKU # YLS6VIETIBDX7X

Based on standardEN 61984

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeHybrid socket

Electrical connection 1, cable outletStraight

Have questions?Chat on WhatsApp

About This Product

Festo NEBM-M23G15-EH- -Q10N-R3LEG14

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Based on standardEN 61984

Cable designationWithout inscription label holder

Electrical connection 1, functionField device side

Electrical connection 1, designRound

Electrical connection 1, connection typeHybrid socket

Electrical connection 1, cable outletStraight

Electrical connection 1, connector systemM23x1

Electrical connection 1, number of connections/cores15

Electrical connection 1, used connections/cores12

Electrical connection 1, type of mountingScrew-type lock

Electrical connection 1, connection pattern00995912

Electrical connection 2, functionControl side

Electrical connection 2, connection typePlugs and cables

Electrical connection 2, cable outletStraight

Electrical connection 2, connector systemRJ45 and open end

Electrical connection 2, number of connections/cores14

Electrical connection 2, used connections/cores12

Operational voltage range DC0, 850

Operational voltage range AC0, 630

Current rating at 40° C23.7

Immunity to surge6

ShieldingYes

Cable length0.5, 100

Cable characteristicSuitable for energy chains

Test conditions cableTest conditions on request

Bending radius, fixed cable55.6

Bending radius, moving cable97.3

Cable diameter13.9

Cable diameter tolerance± 0.3 mm

Cable structure4 x 2.5 mm² + 1 x (2 x 1.0 mm²) + 1 x (2 x 0.24 mm² + 2 x 2 x 0.15 mm²)

Nominal cross section conductor2.5

Wire endsWire ferrule

Degree of protectionIP67

Note on degree of protectionIn mounted state

Ambient temperature-40, 90

Ambient temperature with moving cable-25, 80

CE mark (see declaration of conformity)To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant, Free of halogen

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathTPE-U(PUR)

Cable sheath colourGrey

Material insulating sheathPP
