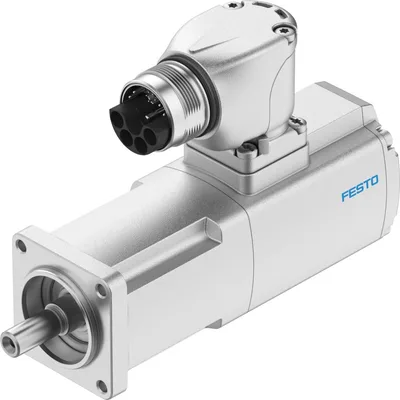

Festo EMMT-AS-40-S-LS-R2SB

Servo motor. Technology series for demanding positioning tasks. A selection of 6 motor sizes in up to 4 lengths. Brushless, permanently magnetized synchronous servo motor. Digital absolute displacement encoder, single turn or multi-turn. Reliable, highly dynamic, extremely precise. Extremely low cogging torque – supports high synchronisation even at low rotational speeds. One motor connection (OCP: one cable plug) - one connecting cable for supply and encoder, with rotatable plug. Degree of protection IP67 (for motor housing and connection technology) and up to IP65 (on the motor shaft with shaft seal). Optionally with holding brake. Optionally with absolute safety encoder, multi-turn. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMT-AS-40-S-LS-R2SBSKU # YLSXIWEL5WOX7

Ambient temperature-40, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Have questions?Chat on WhatsApp

About This Product

Festo EMMT-AS-40-S-LS-R2SB

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-40, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Temperature monitoringDigital motor temperature transmission via EnDat® 2.2

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP40

Note on degree of protectionIP67 for motor housing including connection components

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Detent torque<1.0% of peak torque

Bearing lifetime under nominal conditions20000

Interface code, motor out40P

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM23x1

Electrical connection 1, number of connections/cores15

Electrical connection 1, connection pattern00995913

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityUL E342973

Nominal operating voltage DC325

Type of winding switchStar inside

Number of pole pairs5

Standstill torque0.24

Nominal torque0.21

Peak torque0.83

Nominal rotary speed7000

Max. rotational speed15600

Max. mechanical speed15000

Angular acceleration100000

Nominal power rating of motor154

Continuous stall current1.3

Nominal motor current1.2

Peak current5.4

Motor constant0.175

Standstill torque constant0.24

Voltage constant, phase-to-phase14.6

Phase-phase winding resistance13.1

Phase-phase winding inductance13.9

Winding longitudinal inductivity Ld (phase)5.3

Winding cross inductivity Lq (phase)6.9

Electric time constant1.06

Thermal time constant4.6

Thermal resistance1.58

Measuring flange200 x 200 x 15 mm, steel

Total mass moment of inertia of output0.045

Product weight600

Permissible axial shaft load30

Permissible radial shaft load150

Rotor position sensorAbsolute encoder, single turn

rotor position sensor, manufacturer designationECI 1119

rotor position sensor, absolute detectable revolutions1

Rotor position encoder interfaceEnDat 22

Rotor position sensor, encoder measuring principleInductive

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range3.6, 14

rotor position sensor, position values per revolution524288

Rotor position transducer resolution19

rotor position sensor, system accuracy of angle measurement-120, 120

Brake holding torque0.45

Operating voltage DC for brake24

Brake current consumption0.34

Power consumption, brake8.2

Brake coil resistance70.9

Brake coil inductivity146

Brake separation time28

Brake closing time41

DC brake response delay8

Max. brake no-load speed12000

Max. friction per braking process1500

Number of emergency stops per hour1

Total brake friction1.5

Mass moment of inertia of brake0.0058

Switching cycles holding brake10 million idle actuations (without friction work!)

Mean time to failure (MTTF), subcomponent190 years, rotor position encoder

Accessories 63

Genuine accessories that can be used with the Festo EMMT-AS-40-S-LS-R2SB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAMM-U-65-T42-40P-87	Parallel kit · Mounting accessories
EAMM-A-D32-40G	Axial kit · Mounting accessories
EAMM-A-D32-40P	Axial kit · Mounting accessories
EAMM-A-N48-40G	Axial kit · Mounting accessories
EAMM-A-T42-40G	Axial kit · Mounting accessories
EAMM-A-T42-40P	Axial kit · Mounting accessories
EAMM-A-D32-40P-S1	Axial kit · Mounting accessories
EAMM-A-D32-40G-S1	Axial kit · Mounting accessories
EAMM-A-V25-40P	Axial kit · Mounting accessories
EAMM-A-V32-40P	Axial kit · Mounting accessories
EAMM-A-S38-40G-G2	Axial kit · Mounting accessories
EAMM-A-S48-40G-G2	Axial kit · Mounting accessories
EAMM-A-D19-40P	Axial kit · Mounting accessories
EAMM-A-P5-28B-40P	Axial kit · Mounting accessories
EAMM-A-L48-40G	Axial kit · Mounting accessories
EAMM-A-M43-40G	Axial kit · Mounting accessories
EAMM-A-M48-40G	Axial kit · Mounting accessories
EAMM-A-N38-40G	Axial kit · Mounting accessories
EAMM-A-L38-40G-G2	Axial kit · Mounting accessories
EAMM-A-D40-40G-G2	Axial kit · Mounting accessories
EAMM-A-D40-40G-S1	Axial kit · Mounting accessories
EAMM-A-S38-40P-G2	Axial kit · Mounting accessories
EAMM-A-L27-40G	Axial kit · Mounting accessories
EAMD-19-15-10-8X10	Coupling · Mounting accessories
EAMF-A-L27-40G	Motor flange · Mounting accessories
EAMM-A-R27-40G	Axial kit · Mounting accessories
EAMM-A-P8-38A-40P	Axial kit · Mounting accessories
EAMM-U-50-D32-40P-48	Parallel kit · Mounting accessories
EAMM-U-50-D32-40P-78	Parallel kit · Mounting accessories
EAMM-U-50-D32-40P-78-S1	Parallel kit · Mounting accessories
EAMM-A-D32-35A-40P	Axial kit · Mounting accessories
EAMM-A-P8-38A-40G	Axial kit · Mounting accessories
EAMM-U-50-S38-40P-78	Parallel kit · Mounting accessories
NEBM-M23G15-EH- -Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q7N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH- -Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-2.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-15-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23G15-EH-20-Q10N-R3LEG14	Motor cable · Electrical accessories
NEBM-M23/40	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q7N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-7.5-Q9N-S1LEG21	Motor cable · Electrical accessories
NEBM-M23G15-EH-10-Q9N-S1LEG21	Motor cable · Electrical accessories
EASS-RS-T-A-4P-10-26-B7	Radial shaft seal · General accessories
EAMM-U-65-T42-40P-114	Parallel kit · Mounting accessories
