How can I get a price quote for Festo EMMB-ST-57-M-SB?

You can request a fast quote for Festo EMMB-ST-57-M-SB from Yılsa Engineering. Reference part number YLS5SKTCFUNSZ5U. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EMMB-ST-57-M-SB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EMMB-ST-57-M-SB genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EMMB-ST-57-M-SB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

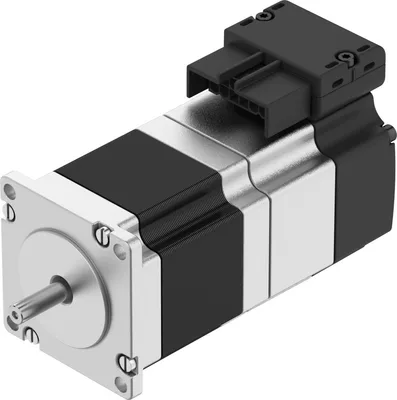

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo EMMB-ST-57-M-SB

Stepper motor. Motor in IP20 (IP40 for motor shaft). Absolute encoder, single or multiturn (without battery). 3 flange sizes MH: 0.22 Nm ... 6.6 Nm. Optionally with holding brake. Automatic motor detection via 'electronic rating plate' with motor correction table. Can be used in applications down to -15 °C. OCP cable (one cable plug) with space-saving plug, can be positioned to the front or rear. Cable length up to 25 m. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMB-ST-57-M-SBSKU # YLS5SKTCFUNSZ5U

Ambient temperature-15, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Storage temperature-20, 70

Relative air humidityNon-condensing

Conforms to standardIEC 60034

Have questions?Chat on WhatsApp

About This Product

Festo EMMB-ST-57-M-SB

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-15, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-20, 70

Relative air humidityNon-condensing

Conforms to standardIEC 60034

Temperature class as per EN 60034-1B

Max. winding temperature130

Rating class as per EN 60034-1S1

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP20

Note on degree of protectionIP40 motor shaft

Interface code, motor out57A

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemConnection pattern L10

Electrical connection 1, number of connections/cores14

Electrical connection 1, connection pattern00997534

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E342973

Nominal operating voltage DC48

Number of pole pairs50

Motor holding torque1.05

Peak torque1.1

Max. rotational speed2600

Max. mechanical speed8000

Stepper angle for complete step1.8

Stepping angle tolerance±5%

Continuous stall current6.1

Nominal motor current5.1

Peak current8

Motor constant0.152

Voltage constant, phase13.1

Phase winding resistance0.17

Phase winding inductance0.5

Winding longitudinal inductivity Ld (phase)0.7

Winding cross inductivity Lq (phase)0.5

Electric time constant2.9

Thermal time constant28

Thermal resistance1.6

Measuring flange200 x 200 x 15 mm, steel

Total mass moment of inertia of output0.324

Product weight1220

Permissible axial shaft load15

Permissible radial shaft load75

Brake holding torque1.74

Operating voltage DC for brake24

Brake current consumption0.38

Power consumption, brake9

Brake coil resistance63.8

Brake coil inductivity107

Brake separation time32

Brake closing time97

DC brake response delay11

Max. brake no-load speed8000

Max. friction per braking process6000

Number of emergency stops per hour1

Mass moment of inertia of brake0.024

Switching cycles holding brake10 million idle actuations (without friction work!)

Accessories 61

Genuine accessories that can be used with the Festo EMMB-ST-57-M-SB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-L10G14-EH-10-Q6N-LE12	Motor cable · Connecting cables
NEBM-L10G14-EH-5-Q6N-LE12	Motor cable · Connecting cables
NEBM-L10G14-EH-2.5-Q6N-LE12	Motor cable · Connecting cables
EMGA-60-P-G3-SST-57	Gear unit · Gear unit
EMGA-60-P-G5-SST-57	Gear unit · Gear unit
CMMT-ST-C8-1C-MP-S0	Servo drive · Motor controller
EAMM-U-60-D32-57A-91	Parallel kit · Mounting accessories
EAMM-U-60-D40-57A-91	Parallel kit · Mounting accessories
EAMM-U-60-D40-57A-91-S1	Parallel kit · Mounting accessories
EAMM-U-60-D32-57A-91-S1	Parallel kit · Mounting accessories
EAMM-U-60-S38-57A-91	Parallel kit · Mounting accessories
EAMM-U-60-S48-57A-91	Parallel kit · Mounting accessories
EAMM-A-V32-57A	Axial kit · Mounting accessories
EAMM-A-T42-57A	Axial kit · Mounting accessories
EAMM-A-M43-60G	Axial kit · Mounting accessories
EAMM-A-D40-57A-S1	Axial kit · Mounting accessories
EAMM-A-L27-60G	Axial kit · Mounting accessories
EAMM-A-M48-60G	Axial kit · Mounting accessories
EAMM-A-T46-57A	Axial kit · Mounting accessories
EAMM-A-L38-60G-G2	Axial kit · Mounting accessories
EAMM-A-L38-57A-G2	Axial kit · Mounting accessories
EAMM-A-N38-60G-G2	Axial kit · Mounting accessories
EAMM-A-N48-60G-G2	Axial kit · Mounting accessories
EAMM-A-L48-60G-G2	Axial kit · Mounting accessories
EAMM-A-S48-60G-G3	Axial kit · Mounting accessories
EAMM-A-D50-60G-G2	Axial kit · Mounting accessories
EAMM-A-D50-60G-S1-G2	Axial kit · Mounting accessories
EAMM-A-D60-60G-G3	Axial kit · Mounting accessories
EAMM-A-D60-60G-S1-G3	Axial kit · Mounting accessories
EAMM-A-S60-60G	Axial kit · Mounting accessories
EAMM-U-86-S60-60G-177	Parallel kit · Mounting accessories
EAMM-A-D32-60G	Axial kit · Mounting accessories
EAMM-A-D32-60G-S1	Axial kit · Mounting accessories
EAMM-A-D40-60G	Axial kit · Mounting accessories
EAMM-A-D40-60G-S1	Axial kit · Mounting accessories
EAMM-A-D60-60G-S1	Axial kit · Mounting accessories
EAMM-A-D60-60G-G2	Axial kit · Mounting accessories
EAMM-A-S62-60G-G2	Axial kit · Mounting accessories
EAMM-A-S48-57A-G2	Axial kit · Mounting accessories
EAMM-A-S38-57A-G2	Axial kit · Mounting accessories
EAMM-A-D40-57A	Axial kit · Mounting accessories
EAMM-A-D32-57A	Axial kit · Mounting accessories
EAMF-A-48A-60G/H	Motor flange · Mounting accessories
EAMM-A-L27-57A	Axial kit · Mounting accessories
EAMF-A-L27-57A	Motor flange · Mounting accessories
EAMM-A-P6-38A-57A	Axial kit · Mounting accessories
EAMD-16-15-6.35-8X10	Coupling · Mounting accessories
EAHM-L2-M5-40	Screw kit · Mounting accessories
EAMM-A-R38-57A	Axial kit · Mounting accessories
EAMM-A-R27-57A	Axial kit · Mounting accessories
EAMM-A-X48-57A	Axial kit · Mounting accessories
EAMM-A-R38-60G	Axial kit · Mounting accessories
EAMM-A-R48-60G	Axial kit · Mounting accessories
EAMM-A-P8-38A-57A	Axial kit · Mounting accessories
EMGA-60-P-G8-SST-57	Gear unit · Mounting accessories
EMGA-60-P-G12-SST-57	Gear unit · Mounting accessories
NEBM-LX/M17-	Motor cable · Electrical accessories
NEBM-L10G14-EH-2.5-Q7N-LE12	Motor cable · Electrical accessories
NEBM-L10G14-EH-5-Q7N-LE12	Motor cable · Electrical accessories
NEBM-L10G14-EH-10-Q7N-LE12	Motor cable · Electrical accessories
NEBM-L10G14-EH-7.5-Q7N-LE12	Motor cable · Electrical accessories
