How can I get a price quote for Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA?

You can request a fast quote for Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA from Yılsa Engineering. Reference part number YLSBTM110Z2904. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

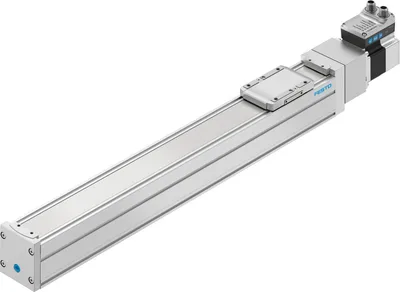

Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA

Ball screw axis unit. Complete solution consisting of drive mechanics, motor and servo drive. Precise XY movements thanks to the slide with powerful ball screw and resilient recirculating ball bearing guide. Protected against external influences by internal guide. Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation. Two control options integrated as standard: digital I/O and IO-Link. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AASKU # YLSBTM110Z2904

Working stroke400

Size60

Stroke reserve0

Spindle diameter12

Spindle pitch12

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke400

Size60

Stroke reserve0

Spindle diameter12

Spindle pitch12

Mounting positionAny

GuideRecirculating ball bearing guide

DesignElectromechanical linear axis, With ball screw, With integrated drive

Type of motorStepper motor

Spindle typeBall screw

Symbol00997292

Position detectionMotor encoder, Via proximity switch

ReferencingPositive fixed stop block, Negative fixed stop block

Rotor position sensorAbsolute encoder, single turn

Rotor position sensor, encoder measuring principlemagnetic

Temperature monitoringSwitch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output

Additional functionsUser interface, Built-in end-position sensing

DisplayLED

Ready status indicationLED

Max. acceleration5

Max. speed0.25

Speed "Speed press"0.01

Repetition accuracy±0.01 mm

Features of digital logic outputsConfigurable, Not galvanically isolated

Duty cycle100%

Insulation protection classB

Max. current digital logic outputs100

Max. current consumption5300

Max. current consumption, logic0.3

Nominal voltage DC24

Nominal current5.3

Parameterisation interfaceIO-Link®, User interface

Rotor position transducer resolution16

Permissible voltage fluctuations+/- 15 %

Power supply, connection typePlug

power supply, connection systemM12x1, T-coded according to EN 61076-2-111

Power supply, number of pins/wires4

Power supply, connection pattern00995989

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364 zone III

Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1

Storage temperature-20, 60

Relative air humidity0 - 90%

Degree of protectionIP40

Protection classIII

Ambient temperature0, 50

Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.

2nd moment of area Iy441000

2nd moment of area Iz542000

Max. force Fy3641

Max. force Fz3641

Max. force Fy total axis600

Max. force Fz total axis1800

Fy at theoretical life value of 100 km (only guide consideration)13400

Fz at theoretical life value of 100 km (only guide consideration)13400

Max. moment Mx29.1

Max. moment My31.8

Max. moment Mz31.8

Max. moment Mx total axis29.1

Max. moment My total axis31.8

Max. moment Mz total axis31.8

Mx at theoretical life value of 100 km (only guide consideration)107

My at theoretical life value of 100 km (only guide consideration)117

Mz at theoretical life value of 100 km (only guide consideration)117

Max. feed force Fx200

Reference value effective load, horizontal20

Reference value effective load, vertical13

Torsional mass moment of inertia It29800

Feed constant12

Reference service life5000

Maintenance intervalLifetime lubrication

Moving mass525

Product weight4902

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Number of digital logic outputs 24 V DC2

Number of digital logic inputs2

Specification logic inputBased on IEC 61131-2, type 1

Working range of logic input24

IO-Link, SIO-Mode supportYes

Features of logic inputConfigurable, Not galvanically isolated

IO-Link, Protocol versionDevice V 1.1

IO-Link, communication modeCOM3 (230.4 kBaud)

IO-Link, Port classA

IO-Link, Number of ports1

IO-Link, Process data length OUT2 bytes

IO-Link, Process data content OUTMove in 1 bit, Move out 1 bit, Quit Error 1 bit, Move intermediate 1 bit

IO-Link, Process data length IN2 bytes

IO-Link, Process data content INState Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit

IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed

IO-Link, Min. cycle time1 ms

IO-Link, Data storage required500

Max. cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation

Switching logic for outputsPNP (positive switching)

Switching logic for inputsPNP (positive switching)

IO-Link, connection technologyPlug

Logic interface, connection typePlug

Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101

Logic interface, number of pins/wires8

Logic interface, plug pattern00992264

Type of mountingWith female thread, With centring sleeve and pin, With accessories

Material end capPainted die cast aluminium

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeHigh-alloy stainless steel

Material drive coverPainted die cast aluminium

Material guide slideSteel

Material guide railSteel

Material slideDie-cast aluminium

Material ball screw nutSteel

Material spindleSteel

Accessories 66

Genuine accessories that can be used with the Festo ELGS-BS-KF-60-400-12P-ST-M-H1-PLK-AA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBL-T12W4-E-5-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-2-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-5-N-LE4	Connecting cable · Connecting cables
CDSU-1	IO-Link® master USB · Electrical accessories
NEBC-M12W8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEFC-M12G8-0.3-M12G5-LK	Adapter · Connecting cables
NEBC-M12W8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBL-T12W4-E-2-N-LE4	Connecting cable · Connecting cables
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
EAHF-L2-45-P	Profile mounting · Mounting accessories
EAPM-L2-SH	Sensor bracket · Position sensing
EAPM-L2-60-SLS	Switch lug · Position sensing
ZBH-5-B	Centring sleeve · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-5-N-M12G8	Connecting cable · Connecting cables
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
EAHF-L2-45-P-D3	Profile mounting · Cylinder mountings
EAHF-L2-45-P-S	Profile mounting · Cylinder mountings
EADT-S-L5-70	Clamping element · Mounting accessories
EHAA-D-L2-60-L2-60	Adapter kit · Cylinder mountings
EHAA-D-L2-60-L2-45-AP	Angle kit · Cylinder mountings
NEBL-T12W4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12W4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBL-T12G4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-B-LE8	Connecting cable · Connecting cables
ZBH-5-M4	Centring sleeve · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
