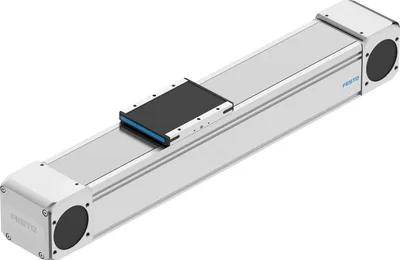

Festo ELGD-TB-KF-120- -

Toothed belt axis. For applications requiring a high dynamic response and short positioning times. For long strokes. Excellent rigidity and load capacity of the guide for greater load in the same installation space. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # ELGD-TB-KF-120- -SKU # YLS4LCU8077TPPU

Effective diameter of drive pinion55.7

Working stroke50, 8500

Size120

Stroke reserve0

Toothed-belt pitch5

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo ELGD-TB-KF-120- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion55.7

Working stroke50, 8500

Size120

Stroke reserve0

Toothed-belt pitch5

Mounting positionAny

GuideRecirculating ball bearing guide

DesignWith toothed belt

Type of motorStepper motor, Servo motor

Symbol00991212

Functional principle of measuring systemIncremental

Position detectionFor inductive sensors

Max. acceleration50, 100

Max. speed3, 10

Repetition accuracy±0.04 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364-C1-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 6 according to ISO 14644-1

Storage temperature-20, 60

Suitable for use with foodSee supplementary material information

Degree of protectionIP40

Ambient temperature0, 60

Impact energy in end positions0.001

Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s

2nd moment of area Iy3550000

2nd moment of area Iz8985000

Max. drive torque36.2

Max. force Fy4300, 8400

Max. force Fz4300, 8400

Max. force Fy total axis2957, 5914

Max. force Fz total axis6500, 9000

Fy at theoretical life value of 100 km (only guide consideration)17576, 35153

Fz at theoretical life value of 100 km (only guide consideration)17576, 35153

Max. idle running transfer resistance71.8

Max. moment Mx170, 350

Max. moment My50, 620

Max. moment Mz60, 580

Max. moment Mx total axis251, 520

Max. moment My total axis80, 674

Max. moment Mz total axis105, 527

Mx at theoretical life value of 100 km (only guide consideration)730, 1459

My at theoretical life value of 100 km (only guide consideration)162, 1920

Mz at theoretical life value of 100 km (only guide consideration)162, 1920

Distance between slide surface and guide centre80

Max. feed force Fx1300

Frictional torque independent of load2

Torsional mass moment of inertia It1433600

Mass moment of inertia JH per metre of stroke2.792

Mass moment of inertia JL per kg of working load7.7562

Mass moment of inertia JO30.2136, 41.6324

Feed constant175

Reference service life5000

Maintenance intervalLifetime lubrication

Moving mass1708, 3140

Product weight11005, 111675

Basic weight for 0 mm stroke10425, 13075

Additional weight per 10 mm stroke116

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Interface code, actuatorN80

Material end capAluminium gravity die-cast, painted

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeHigh-alloy stainless steel

Material drive coverAluminium gravity die-cast, painted

Material guide slideSteel

Material guide railSteel

Material pulleysHigh-alloy stainless steel

Material slideWrought aluminium alloy

Material toothed beltPolyurethane with steel cord
