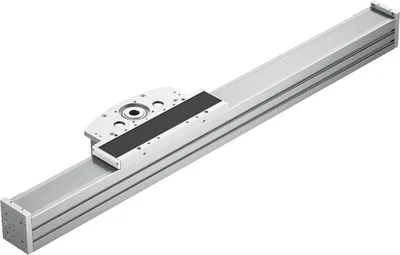

Festo ELCC-TB-KF-110- -
Cantilever axis. Axis for high speeds and acceleration. Very low moving mass thanks to fixed drive head. High rigidity thanks to innovative design principle. Toothed belt drive with recirculating ball bearing guide. Able to move high loads of up to 100 kg vertically. Long strokes of up to 2 m possible. Sustainable thanks to extended life cycle and easier repairs. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Effective diameter of drive pinion68.755
Working stroke50, 2000
Size110
Stroke reserve0, 2000
Toothed-belt pitch8
Mounting positionAny
About This Product
Cantilever axis. Axis for high speeds and acceleration. Very low moving mass thanks to fixed drive head. High rigidity thanks to innovative design principle. Toothed belt drive with recirculating ball bearing guide. Able to move high loads of up to 100 kg vertically. Long strokes of up to 2 m possible. Sustainable thanks to extended life cycle and easier repairs. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo ELCC-TB-KF-110- -
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Effective diameter of drive pinion68.755
Working stroke50, 2000
Size110
Stroke reserve0, 2000
Toothed-belt pitch8
Mounting positionAny
GuideRecirculating ball bearing guide
DesignElectromechanical cantilever axis
Symbol00991210
Max. acceleration30
Max. speed5
Repetition accuracy±0.05 mm
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Degree of protectionIP20
Ambient temperature-10, 60
2nd moment of area Iy6830570
2nd moment of area Iz4925970
Max. drive torque90
Max. force Fy20596
Max. force Fz20022
Max. moment Mx317
Max. moment My2368
Max. moment Mz2286
Max. feed force Fx2500
Mass moment of inertia JH per metre of stroke174.9
Mass moment of inertia JL per kg of working load11.8
Mass moment of inertia JO157.1
Feed constant216
Reference service life5000
Lubrication interval dependent on operating distance1000
Moving mass with 0 mm stroke with second drive head16953
Moving mass for 0 mm stroke10017
Additional moving mass per 10 mm stroke148
Weight of additional slide4777
Basic weight for 0 mm stroke27299
Additional weight per 10 mm stroke148
Basic weight for 0 mm stroke with 2nd drive head39012
Material end capAnodised wrought aluminium alloy
Material profileAnodised wrought aluminium alloy
Note on materialsRoHS compliant
Material drive headAnodised wrought aluminium alloy
Material guide railRolled steel, Corrotect coated
Material housingHigh-alloy stainless steel
Material slideAnodised cast aluminium
Material toothed belt clamping pieceAnodised wrought aluminium alloy
Material toothed beltPolychloroprene with glass filament and nylon coating
Accessories 75
Genuine accessories that can be used with the Festo ELCC-TB-KF-110- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| NST-8-M6-1 | Slot nut · Mounting accessories | |
| SIEN-M8B-NO-K-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PO-K-L | Proximity sensor · Position sensing | |
| DASI-E21-90/110-S8-SL | Switch lug · Position sensing | |
| DASI-E21-110-S8-SR | Sensor bracket · Position sensing | |
| SIEN-M8B-NO-S-L | Proximity sensor · Position sensing | |
| SIEN-M8B-PO-S-L | Proximity sensor · Position sensing | |
| NEBM-M12G8-E-5-S1G9-V3 | Encoder cable · Connecting cables | |
| NEBM-M12G8-E-10-S1G9-V3 | Encoder cable · Connecting cables | |
| NEBM-M12G8-E-15-S1G9-V3 | Encoder cable · Connecting cables | |
| EMMT-AS-100- | Servo motor · Motors | |
| NEFM-S1G9-K-0,5-R3G8 | Adapter · Connecting cables | |
| NEBA-M8G3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-2.5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8W3-U-5-N-LE3 | Connecting cable · Connecting cables | |
| NEBA-M8G3-U-5-N-M8G3 | Connecting cable · Connecting cables | |
| EAMM-A-L95-160G-G2 | Axial kit · Mounting accessories | |
| SIEN-M8B-NS-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-NS-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PS-K-L | Proximity sensor · Cylinder sensors for direct mounting | |
| SIEN-M8B-PS-S-L | Proximity sensor · Cylinder sensors for direct mounting | |
| ABP-8 | Slot cover · Mounting accessories | |
| EMGA-80-P-G5-SAS-100 | Gear unit · Mounting accessories | |
| EMGA-120-P-G3-SAS-140 | Gear unit · Mounting accessories | |
| EAMD-67-51-25-32X32-U | Coupling · Mounting accessories | |
| EAMB-44-7-35X30-32X32 | Drive shaft adapter · Mounting accessories | |
| KSK-185- | Connecting shaft · Mounting accessories | |
| EAHM-L2-M8-70 | Screw kit · Mounting accessories | |
| NEBM-M12G8-E- -S1G9-V3 | Encoder cable · Electrical accessories | |
| EAMF-A-95A-120G-G2 | Motor flange · Mounting accessories | |
| EAMM-A-L95-120G-G2 | Axial kit · Mounting accessories | |
| EAMM-A-L95-80G-G2 | Axial kit · Mounting accessories | |
| EAMK-A-L95-95A/B-G2 | Coupling housing · Mounting accessories | |
| EAMD-67-51-20-32X32-U | Coupling · Mounting accessories | |
| DHAA-D-E21-70...110-Q11-40 | Adapter kit · Mounting accessories | |
| DHAA-D-E21-70...110-Q11-40-E | Adapter kit · Mounting accessories | |
| DHAA-D-E21-70...110-Q11-50 | Adapter kit · Mounting accessories | |
| DHAA-D-E21-70...110-Q11-50-E | Adapter kit · Mounting accessories | |
| DHAA-D-E21-70...110-Q11-63 | Adapter kit · Mounting accessories | |
| DHAA-D-E21-70...110-Q11-63-E | Adapter kit · Mounting accessories | |
| DHAA-G-E21-70...110-B8-63 | Adapter kit · Mounting accessories | |
| DHAA-G-E21-70...110-B8G-63 | Adapter kit · Mounting accessories | |
| DHAA-G-E21-70...110-B8-80 | Adapter kit · Mounting accessories | |
| DHAA-G-E21-70...110-B8G-80 | Adapter kit · Mounting accessories | |
| EMMT-AS-100-S-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RS | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMB | Servo motor · Electrical accessories | |
| NST-8-M6-10 | Slot nut · Mounting accessories | |
| NST-8-M6-50 | Slot nut · Mounting accessories | |
| EADT-S-L5-120 | Clamping element · Mounting accessories | |
| EMGA-80-A-G5-100A | Gear unit · Mounting accessories | |
| ZBH-9-B | Centring sleeve · Mounting accessories | |
| ZBH-12-B | Centring sleeve · Mounting accessories | |
| EMMT-AS-100-S-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-S-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-M-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-L-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMY | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMYB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RMB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RSB | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RM | Servo motor · Electrical accessories | |
| EMMT-AS-100-H-HS-RS | Servo motor · Electrical accessories |
