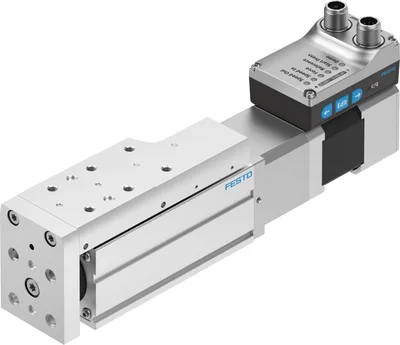

Festo EGSS-BS-KF-45-50-10P-ST-M-H1-PLK-AA
Mini slide unit. Complete solution consisting of drive mechanics, motor and servo drive. Increased protection against rotation and absorption of lateral forces thanks to rigid, resilient and precise linear guide. Precise positioning thanks to smoothly running ball screw drive. Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation. Two control options integrated as standard: digital I/O and IO-Link. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Working stroke50
Size45
Stroke reserve0
Reversing backlash theoretical150
Spindle diameter10
Spindle pitch10
About This Product
Mini slide unit. Complete solution consisting of drive mechanics, motor and servo drive. Increased protection against rotation and absorption of lateral forces thanks to rigid, resilient and precise linear guide. Precise positioning thanks to smoothly running ball screw drive. Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation. Two control options integrated as standard: digital I/O and IO-Link. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems
Festo EGSS-BS-KF-45-50-10P-ST-M-H1-PLK-AA
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Working stroke50
Size45
Stroke reserve0
Reversing backlash theoretical150
Spindle diameter10
Spindle pitch10
Mounting positionAny
GuideRecirculating ball bearing guide
DesignWith ball screw, With integrated drive
Type of motorStepper motor
ReferencingPositive fixed stop block, Negative fixed stop block
Spindle typeBall screw
Symbol00997294
Position detectionMotor encoder, Via proximity switch
Rotor position sensorAbsolute encoder, single turn
Rotor position sensor, encoder measuring principlemagnetic
Protective functionTemperature monitoring
Additional functionsBuilt-in end-position sensing
DisplayLED
Ready status indicationLED
Max. acceleration5
Max. speed0.25
Speed "Speed press"0.01
Repetition accuracy±0.015 mm
Features of digital logic outputsConfigurable, Not galvanically isolated
Duty cycle100%
Insulation protection classB
Max. current digital logic outputs100
Max. current consumption3000
Max. current consumption, logic0.3
Nominal voltage DC24
Nominal current3
Parameterisation interfaceIO-Link®, User interface
Rotor position transducer resolution16
Permissible voltage fluctuations+/- 15 %
Power supply, connection typePlug
power supply, connection systemM12x1, T-coded according to EN 61076-2-111
Power supply, number of pins/wires4
Power supply, connection pattern00995989
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27
Corrosion resistance class CRC0 - No corrosion stress
LABS (PWIS) conformityVDMA24364 zone III
Cleanroom suitability, measured according to ISO 14644-14Class 9 according to ISO 14644-1
Storage temperature-20, 60
Relative air humidity0 - 90%
Degree of protectionIP40
Protection classIII
Ambient temperature0, 50
Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.
Dynamic basic load rating fixed bearing7413
Dynamic basic load rating linear guide3240
Dynamic basic load rating ball screw3200
Max. force Fy1314
Max. force Fz1314
Fy at theoretical life value of 100 km (only guide consideration)3240
Fz at theoretical life value of 100 km (only guide consideration)3240
Max. moment Mx8.14
Max. moment My7.05
Max. moment Mz7.05
Mx at theoretical life value of 100 km (only guide consideration)20
My at theoretical life value of 100 km (only guide consideration)17
Mz at theoretical life value of 100 km (only guide consideration)17
Max. radial force at drive shaft340
Max. feed force Fx120
Reference value effective load, horizontal6
Reference value effective load, vertical6
Static basic load rating ball screw5900
Static basic load rating linear guide5630
Feed constant10
Static basic load rating fixed bearing3966
Reference service life5000
Maintenance intervalLifetime lubrication
Moving mass for 0 mm stroke212
Additional moving mass per 10 mm stroke30
Product weight1552
Basic weight for 0 mm stroke1238
Additional weight per 10 mm stroke63
Number of digital logic outputs 24 V DC2
Number of digital logic inputs2
Specification logic inputBased on IEC 61131-2, type 1
Working range of logic input24
IO-Link, SIO-Mode supportYes
Features of logic inputConfigurable, Not galvanically isolated
IO-Link, Protocol versionDevice V 1.1
IO-Link, communication modeCOM3 (230.4 kBaud)
IO-Link, Port classA
IO-Link, Number of ports1
IO-Link, Process data length OUT2 bytes
IO-Link, Process data content OUT1 bit (move in), 1 bit (Move out), 1 bit (Quit Error), 1 bit (move intermediate)
IO-Link, Process data length IN2 bytes
IO-Link, Process data content IN1 bit (state device), 1 bit (State Intermediate), 1 bit (State Move), 1 bit (State in), 1 bit (state out)
IO-Link, Service data IN32 bit Force, 32 bit position, 32 bit speed
IO-Link, Min. cycle time1 ms
IO-Link, Data storage required500
Max. cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation
Switching logic for outputsPNP (positive switching)
Switching logic for inputsPNP (positive switching)
IO-Link, connection technologyPlug
Logic interface, connection typePlug
Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101
Logic interface, number of pins/wires8
Logic interface, plug pattern00992264
Type of mountingWith female thread, With centring sleeve, With accessories, Via cylindrical dowel pin
Note on materialsRoHS compliant
Material guide slideBearing steel
Material guide railBearing steel
Material housingAnodised wrought aluminium alloy
Material yoke plateAnodised wrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Material slideAnodised wrought aluminium alloy
Material ball screw nutBearing steel
Material spindleBearing steel
