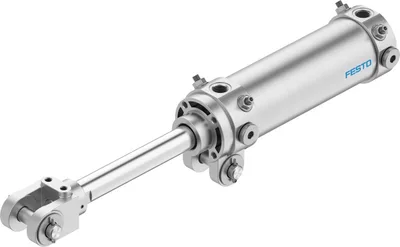

FESTO DWB-50-125-Y-AB-G

Hinge cylinder. For clamping components during the welding process. Double-acting. Easy to mount thanks to swivel bearing on the bearing cap. Integrated flow control. Integrated end-position cushioning. Rod wiper seal to protect against welding spatter. Asian automotive standard for car body production

FESTOMFR # DWB-50-125-Y-AB-GSKU # CEY-937FC781CF43

Stroke125

Piston diameter50 mm

Piston rod threadM16x1.5

Broad rod clevis/swivel mounting19.5

Mounting positionAny

Speed regulationIntegrated flow control at both ends

Have questions?Chat on WhatsApp

About This Product

FESTO DWB-50-125-Y-AB-G

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke125

Piston diameter50 mm

Piston rod threadM16x1.5

Broad rod clevis/swivel mounting19.5

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

DesignPiston, Piston rod with rod clevis, Swivel mounting on bearing cap, Cylinder barrel

Speed regulationIntegrated flow control at both ends

Position detectionVia proximity switch

Piston-rod endMale thread with rod clevis

Operating pressure1, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Ambient temperature-10, 60

Impact energy in end positions0.7

Cushioning length20

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178

Moving mass for 0 mm stroke664

Additional moving mass per 10 mm stroke25

Basic weight for 0 mm stroke1338

Additional weight per 10 mm stroke37

alternative connectionsSee product drawing

Type of mountingVia swivel mounting on bearing cap, With accessories

Pneumatic connectionG1/4

Material rod clevisCast steel, Tempered steel

Note on materialsRoHS compliant

Material wiperBronze

Material coverDie-cast aluminium, anodised

Material sealsNBR

Material piston rodTempered steel, Hard chrome-plated

Material cylinder barrelWrought aluminium alloy, anodised

Accessories 67

Genuine accessories that can be used with the FESTO DWB-50-125-Y-AB-G motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-BSW-1L-NU-W-0.3-N-M12	Proximity sensor · Proximity sensors
SDBT-BSW-1L-PU-W-5-N-LE	Proximity sensor · Proximity sensors
SDBT-BSW-1L-NU-W-5-N-LE	Proximity sensor · Proximity sensors
SMBR-8-8/100-S6	Mounting kit · Retainer for proximity sensor
SDBT-BSW-1L-PU-W-0.3-N-M12	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
QS-G1/4-8	Push-in fitting · Fittings
QS-G1/4-8-I	Push-in fitting · Fittings
QSL-G1/4-8	Push-in L-fitting · Fittings
HNH-50/63/80	Foot mounting · Mounting accessories
TBH-50/63/80	Mounting bracket · Mounting accessories
DAMD-F5-S-50	Mounting kit · Mounting accessories
GRLA-1/4-QS-8-D	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
PUN-H-8X1,25-NT	Plastic tubing · Tubes
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
VFOE-LE-T-G14-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10-F1A	One-way flow control valve · Function fittings
VBQF-U-G14-E	Quick exhaust valve · Function fittings
VBQF-U-G14-Q8	Quick exhaust valve · Function fittings
VBQF-D-G14-E	Quick exhaust valve · Function fittings
KTH-50/63/80	Switch lever · Mounting accessories
NPFC-L-2G14-F	Elbow fitting · Other connectors
NPFC-L-R14-G14-MF	Elbow fitting · Other connectors
NPFC-L-2R14-M	Elbow fitting · Other connectors
NPFC-Y-3G14-F	Y-fitting · Other connectors
NPFC-Y-R14-2G14-MFF	Y-fitting · Other connectors
NPFC-T-3G14-F	T-fitting · Other connectors
NPFC-T-R14-2G14-MFF	T-fitting · Other connectors
NPFC-T-2G14-R14-FMF	T-fitting · Other connectors
NPFC-T-3R14-M	T-fitting · Other connectors
NPFC-T-G14-2R14-FMM	T-fitting · Other connectors
NPFC-T-2R14-G14-MMF	T-fitting · Other connectors
NPFC-X-4G14-F	X-fitting · Other connectors
NPFC-X-R14-3G14-MFFF	X-fitting · Other connectors
NPFC-D-G18-G14-M	Double nipple · Other connectors
NPFC-D-2G14-M	Double nipple · Other connectors
NPFC-D-R18-R14-M	Double nipple · Other connectors
NPFC-D-2R14-M	Double nipple · Other connectors
NPFC-S-2G14-F	Sleeve · Other connectors
NPFC-E1-2G14-FM	Extension · Other connectors
NPFC-E2-2G14-FM	Extension · Other connectors
NPFC-E3-2G14-FM	Extension · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NPFC-D-2G14-M-P100	Double nipple · Other connectors
NPFC-R-G38-G14-F	Reducing sleeve · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
NPFC-R-G34-G14-MF	Reducing nipple · Other connectors
NPFC-H-G14-F	Bulkhead fitting · Other connectors
NPFC-DS-G14-G14-M	Double nipple · Other connectors
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
DARP-M16P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
