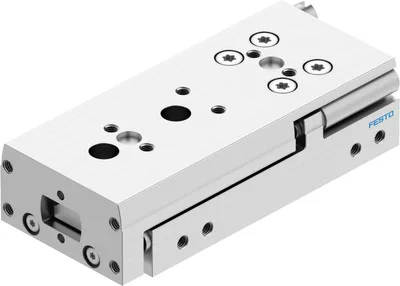

Festo DGST-6-40-PA

Mini slide. Powerful twin-piston drive. Shortest mini slide on the market. Precise recirculating ball bearing guide. Versatile mounting options. Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials

FestoMFR # DGST-6-40-PASKU # YLSOFXDW42V8C

Stroke40

Piston diameter6 mm

Operating mode, drive unitYoke

Mounting positionAny

GuideRecirculating ball bearing guide

DesignYoke, Piston rod, Slide

Have questions?Chat on WhatsApp

About This Product

Festo DGST-6-40-PA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke40

Adjustable end position range/length front13.1

Adjustable end position range/length rear11.6

Piston diameter6 mm

Operating mode, drive unitYoke

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

GuideRecirculating ball bearing guide

DesignYoke, Piston rod, Slide

Position detectionVia proximity switch

Symbol00991249

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Operating pressure21.75, 116

Max. speed0.5

Repetition accuracy<= 0.3 mm

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-10, 60

Impact energy in end positions0.018

Cushioning length0.9

Max. force Fy260

Max. force Fz260

Max. moment Mx1.2

Max. moment My1.2

Max. moment Mz1.2

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke25

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke34

Moving mass78

Product weight150

Type of mountingWith through-hole

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsHNBR

Material guidePOM, TPE-E, High-alloy steel

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 53

Genuine accessories that can be used with the Festo DGST-6-40-PA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ZBS-2	Centring pin · Mounting accessories
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
GRLA-M3-QS-3	One-way flow control valve · Function fittings
PUN-H-3X0,5-BL	Plastic tubing · Tubes
ZBH-5-M4	Centring sleeve · Mounting accessories
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
QSM-M3-3	Push-in fitting · Fittings
QSM-M3-3-I	Push-in fitting · Fittings
QSML-M3-3	Push-in L-fitting · Fittings
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
ZBH-5-B	Centring sleeve · Mounting accessories
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-2	Barbed T-fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-3	Barbed T-fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-4	Push-in fitting · Push-in fittings
QSM-M3-4-I	Push-in fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLO-M3-QS-3	Throttle valve · Function fittings
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
DYEF-G8-M4-Y1	Shock absorber · Mounting accessories
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
DADG-AK-G8-6-40	Connection kit · Connection accessories
DHAA-D-G8-H-6-10-G8-6-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-6-40-G8-6-30	Adapter kit · Mounting accessories
DHAA-D-G8-H-8-10-G8-68-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-8-30-G8-68-20	Adapter kit · Mounting accessories
DHAA-G-G8-6-B18-6	Adapter kit · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
