How can I get a price quote for Festo DGSS-6-5-E1A?

You can request a fast quote for Festo DGSS-6-5-E1A from Yılsa Engineering. Reference part number YLSVX0UFR2WMZ7M. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DGSS-6-5-E1A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DGSS-6-5-E1A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DGSS-6-5-E1A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

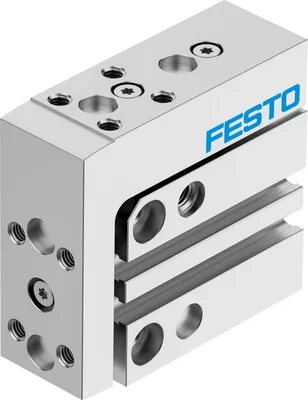

Festo DGSS-6-5-E1A

Mini slide. Slim design. Excellent positioning accuracy. Precise and resilient roller bearing guide. Optimum price/performance ratio. Slide and yoke plate from one component. Can be operated without additional cushioning elements. Optional: stroke adjustment and external cushioning using accessories. Recommended for production plants for the manufacture of Li‑ion manifolds (F1A)

FestoMFR # DGSS-6-5-E1ASKU # YLSVX0UFR2WMZ7M

Stroke5

Size6

Piston diameter6 mm

Mounting positionAny

GuideRecirculating ball bearing guide

DesignYoke, Piston rod, Slide

Have questions?Chat on WhatsApp

About This Product

Festo DGSS-6-5-E1A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke5

Size6

Piston diameter6 mm

CushioningElastomer cushioning, double-sided, stroke not adjustable

Mounting positionAny

GuideRecirculating ball bearing guide

DesignYoke, Piston rod, Slide

Position detectionVia proximity switch

Symbol00991737

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Operating pressure21.75, 116

Max. speed0.5

Repetition accuracy<= 0.3 mm

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-10, 60

Impact energy in end positions0.01

Cushioning length0.9

Max. force Fy296

Max. force Fz296

Max. moment Mx0.8

Max. moment My0.7

Max. moment Mz0.7

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke13

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke17

Moving mass27

Product weight64

Type of mountingWith through-hole, With female thread

Pneumatic connectionM3

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsNBR, PU

Material guideNBR, PA, High-alloy steel

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 45

Genuine accessories that can be used with the Festo DGSS-6-5-E1A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QSM-M3-3-I-R	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSML-M3-3	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
GRLA-M3	One-way flow control valve · Function fittings
GRLA-M3-QS-3	One-way flow control valve · Function fittings
SMT-10G-PS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
SMT-10G-PS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SME-10M	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10G-NS-24V-E-0,3Q-M8D	Proximity sensor · Proximity sensors
SMT-10G-NS-24V-E-2,5Q-OE	Proximity sensor · Proximity sensors
DYEF-G8-M4-Y1	Shock absorber · Mounting accessories
DYSS-G8-2-4-Y1F	Shock absorber · Mounting accessories
DYSS-G8-2-4-Y1F-F1A	Shock absorber · Mounting accessories
DYEF-G8-M4-Y1-F1A	Shock absorber · Mounting accessories
SDBC-MSB-1L-PU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-NU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-ZU-K-2-LE	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-PU-K-0.3-M8	Proximity sensor · Cylinder sensors for direct mounting
SDBC-MSB-1L-NU-K-0.3-M8	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
DYEF-G8-S-M4-Y1	Shock absorber · Mounting accessories
DYEF-G8-M4-Y1F	Shock absorber · Mounting accessories
DADP-SP-G9-6-R	Sub-base kit · Mounting accessories
DADP-SP-G9-6-F	Stop kit · Mounting accessories
ABAZ-G9-HD-6	Centring sleeve · Mounting accessories
QSM-M3-3	Push-in fitting · Fittings
PUN-H-3X0,5-NT	Plastic tubing · Tubes
PUN-H-3X0,5-BL	Plastic tubing · Tubes
PUN-H-3X0,5-SW	Plastic tubing · Tubes
ZBH-5-B	Centring sleeve · Mounting accessories
