How can I get a price quote for Festo DFPI-320- -ND2P-C1V-NB3P-A?

You can request a fast quote for Festo DFPI-320- -ND2P-C1V-NB3P-A from Yılsa Engineering. Reference part number YLSCG6IFPPOLIGI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DFPI-320- -ND2P-C1V-NB3P-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DFPI-320- -ND2P-C1V-NB3P-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DFPI-320- -ND2P-C1V-NB3P-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

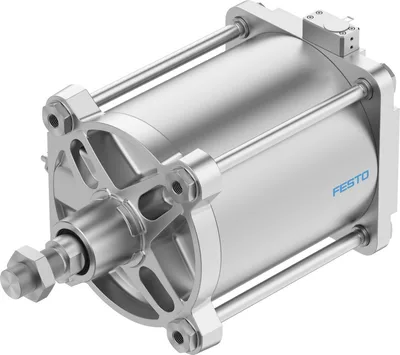

Festo DFPI-320- -ND2P-C1V-NB3P-A

Linear drive. Mounting interfaces to ISO 15552 on bearing and end caps. Sturdy tie rod design. Integrated air supply. Optionally with integrated displacement encoder or fully integrated positioner. IP65, IP67, IP69K, NEMA4. To EU Explosion Protection Directive (ATEX)

FestoMFR # DFPI-320- -ND2P-C1V-NB3P-ASKU # YLSCG6IFPPOLIGI

Size of valve actuator320

Stroke40, 990

Piston diameter320 mm

Based on standardISO 15552

CushioningNo cushioning

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo DFPI-320- -ND2P-C1V-NB3P-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator320

Stroke40, 990

Piston diameter320 mm

Based on standardISO 15552

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

DesignPiston, Piston rod, Tie rod 1, Cylinder barrel

Position detectionVia integrated displacement encoder

Symbol00992806

Functional principle of measuring systemPotentiometer

Reverse polarity protectionInitialisation connection, For operating voltage, For setpoint value

Operating pressure0.3, 0.8

Operating pressure3, 8

Operating pressure43.5, 116

Nominal operating pressure0.6

Nominal operating pressure6

Nominal operating pressure87

Analogue output4 - 20 mA

Operational voltage range DC21.6, 26.4

Max. current consumption220

Nominal operating voltage DC24

Setpoint value input4, 20

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Explosion protection certification outside the EUEPL Gc (GB)

Explosion protectionZone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX)

ATEX category gasII 3G

ATEX category dustII 3D

Explosion ignition protection type for gasEx ec IIC T4 X Gc

Explosion ignition protection type for dustEx tc IIIC T120°C X Dc

Explosion ambient temperature-5°C <= Ta <= +50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Continuous shock resistance to DIN/IEC 68 Part 2-82Tested to severity level 2

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-5, 50

Media temperature-5, 40

Relative air humidity5 - 100%, Condensing

Degree of protectionIP65, IP67, IP69K, NEMA 4

Vibration resistance to DIN/IEC 68 Part 2-6Tested to severity level 2

Ambient temperature-5, 50

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke46385

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke48255

Air consumption on return stroke per 10 mm5.412

Air consumption on advance stroke per 10 mm5.63

Moving mass for 0 mm stroke16500

Additional moving mass per 10 mm stroke227

Basic weight for 0 mm stroke57550

Additional weight per 10 mm stroke582

Analogue output accuracy1

Dead zone size1

Hysteresis in ± %FS1

Positioning accuracy1.0 %FS

Repetition accuracy in ± %FS1

Electrical connectionStraight plug connector/screw terminal, With specific accessories

Pneumatic connectionFor tubing O.D. 8 mm, For tubing outside diameter of 10 mm, With specific accessories

Note on materialsRoHS compliant

Material end capCoated wrought aluminium alloy

Material underneath coverDie-cast aluminium, coated

Material piston rodHigh-alloy stainless steel

Material piston rod wiperNBR

Material screwsCoated steel, High-alloy stainless steel

Material static sealsNBR

Material tie rodHigh-alloy stainless steel

Material cylinder barrelSmooth-anodised wrought aluminium alloy

Accessories 29

Genuine accessories that can be used with the Festo DFPI-320- -ND2P-C1V-NB3P-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ABP-5-S	Slot cover · Mounting accessories
SMBK-8	Clip · Mounting accessories
SMBZ-8-125/320	Mounting · Mounting kits for proximity sensors, other sensors
PEN-8X1,25-SW	Plastic tubing · Tubing
PEN-8X1,25-NT	Plastic tubing · Tubing
SMM-8	Positioning element · Mounting accessories
PEN-8X1,25-SW-400	Plastic tubing · Tubing
PEN-8X1,25-BL-400	Plastic tubing · Tubing
PEN-8X1,25-SI-400	Plastic tubing · Tubing
PEN-8X1,25-BL	Plastic tubing · Tubing
PEN-8X1,25-SI	Plastic tubing · Tubing
PEN-8X1,25-GN	Plastic tubing · Tubing
PEN-8X1,25-RT	Plastic tubing · Tubing
PEN-8X1,25-GE	Plastic tubing · Tubing
CRSMT-8M-PS-24V-K-5,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-10,0-OE-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M12-EX2	Proximity sensor · Cylinder sensors for direct mounting
CRSMT-8M-PS-24V-K-0,3-M8D-EX2	Proximity sensor · Cylinder sensors for direct mounting
NHSB-A1-5-BLG5-LE5-PU8-2XBB	Connecting cable · Electrical accessories
NHSB-A1-10-BLG5-LE5-PU8-2XBB	Connecting cable · Electrical accessories
NHSB-A1-15-BLG5-LE5-PU8-2XBB	Connecting cable · Electrical accessories
CMSX-P-S-C-U-F1-D-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-D-130-C	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-130-C	Positioner · Cylinder sensors for direct mounting
CMSH-SE-VDE1-D-A-AL-G14-C1M20-HA	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
VTOP-	Valve terminal · Cylinder sensors for direct mounting
