How can I get a price quote for Festo DADM-EP-G6-10?

You can request a fast quote for Festo DADM-EP-G6-10 from Yılsa Engineering. Reference part number YLSCW3FMF8FXIGA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DADM-EP-G6-10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DADM-EP-G6-10 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DADM-EP-G6-10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

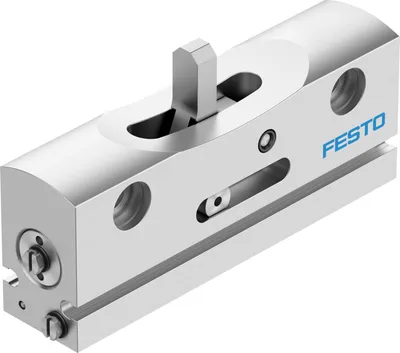

Festo DADM-EP-G6-10

Intermediate-position module

FestoMFR # DADM-EP-G6-10SKU # YLSCW3FMF8FXIGA

Size10

Mounting positionAny

DesignForce pilot operated motion sequence

Position detectionVia proximity switch

Symbol00991270

Operating pressure3, 6

Have questions?Chat on WhatsApp

About This Product

Festo DADM-EP-G6-10 (Intermediate-position module) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo DADM-EP-G6-10 — price, stock availability and technical specifications.

Festo DADM-EP-G6-10

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size10

Mounting positionAny

DesignForce pilot operated motion sequence

Position detectionVia proximity switch

Symbol00991270

Operating pressure3, 6

Max. impact speed0.8

Max. swivel time150

Repetition accuracy±0.02 mm

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature0, 60

Max. stop force500

Product weight154

Type of mountingVia through-hole and centring sleeve

Pneumatic connectionM3

Note on materialsRoHS compliant

Material sealsPU

Material housingWrought aluminium alloy

Material leverHigh-alloy stainless steel

Accessories 10

Genuine accessories that can be used with the Festo DADM-EP-G6-10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SME-10-KL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-10-SL-LED-24	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
