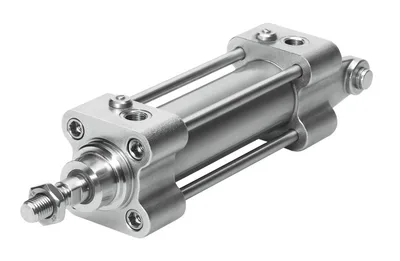

Festo CRDNGS-40- -PPV-A

ISO cylinder. ISO 15552 (ISO 6431, VDMA 24562). Corrosion resistant against aggressive ambient conditions. Easy-to-clean design. Variants: through piston rod, heat-resistant design. Threaded mounting, mounting via accessories. For position sensing. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # CRDNGS-40- -PPV-ASKU # YLSRIQIAEKPJXZ5

Stroke10, 2000

Piston diameter40 mm

Piston rod threadM12x1.25

Based on standardISO 15552

Mounting positionAny

Piston-rod endMale thread

Have questions?Chat on WhatsApp

About This Product

Festo CRDNGS-40- -PPV-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 2000

Piston diameter40 mm

Piston rod threadM12x1.25

Based on standardISO 15552

CushioningPneumatic cushioning, adjustable at both ends

Mounting positionAny

Piston-rod endMale thread

DesignPiston, Piston rod, Swivel clevis, Tie rod 1, Cylinder barrel

Position detectionVia proximity switch

Symbol00991235

VariantsEnd cap with swivelling rod eye

Operating pressure0.06, 1

Operating pressure0.6, 10

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-20, 80

Cushioning length21

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke633

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754

Moving mass for 0 mm stroke268

Additional moving mass per 10 mm stroke16

Basic weight for 0 mm stroke1515

Additional weight per 10 mm stroke33

Type of mountingWith female thread, With accessories

Pneumatic connectionG1/4

Material coverCast stainless steel

Material sealsTPE-U(PU)

Material housingHigh-alloy stainless steel

Material pistonWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material cylinder barrelHigh-alloy stainless steel

Material nutHigh-alloy stainless steel

Material bearingPOM

Material collar nutHigh-alloy stainless steel

Material tie rodHigh-alloy stainless steel

Accessories 60

Genuine accessories that can be used with the Festo CRDNGS-40- -PPV-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRSMEO-4-K-LED-24	Proximity sensor · Proximity sensors
CRSGS-M12X1,25	Rod eye · Piston-rod attachments
CRFK-M12X1,25	Self-aligning rod coupler · Piston-rod attachments
CRLNG-40	Clevis foot · Cylinder mountings
NPQR-DK-G14-Q8	Push-in fitting · Fittings
NPQR-L-G14-Q8	Push-in fitting · Fittings
CRGRLA-1/4-B	One-way flow control valve · Function fittings
PTFEN-8X1-NT	Plastic tubing · Tubes
CRSG-M12X1,25	Rod clevis · Piston-rod attachments
VFOE-LE-T-G14-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G14-Q10-F1A	One-way flow control valve · Function fittings
CRCN-1/4-PK-4	Barbed fitting · Stainless-steel fittings
CRCN-1/4-PK-6	Barbed fitting · Stainless-steel fittings
CRQS-1/4-8-I	Push-in fitting · Stainless-steel fittings
CRQS-1/4-10-I	Push-in fitting · Stainless-steel fittings
CRQSL-1/4-6	Push-in L-fitting · Stainless-steel fittings
CRQS-1/4-6	Push-in fitting · Stainless-steel fittings
CRQS-1/4-8	Push-in fitting · Stainless-steel fittings
CRQS-1/4-10	Push-in fitting · Stainless-steel fittings
CRQSL-1/4-8	Push-in L-fitting · Stainless-steel fittings
CRQSL-1/4-10	Push-in L-fitting · Stainless-steel fittings
CRQST-1/4-8	Push-in T-fitting · Stainless-steel fittings
CRQST-1/4-10	Push-in T-fitting · Stainless-steel fittings
NPFC-L-2G14-F	Elbow fitting · Other connectors
NPFC-L-R14-G14-MF	Elbow fitting · Other connectors
NPFC-L-2R14-M	Elbow fitting · Other connectors
NPFC-Y-3G14-F	Y-fitting · Other connectors
NPFC-Y-R14-2G14-MFF	Y-fitting · Other connectors
NPFC-T-3G14-F	T-fitting · Other connectors
NPFC-T-R14-2G14-MFF	T-fitting · Other connectors
NPFC-T-2G14-R14-FMF	T-fitting · Other connectors
NPFC-T-3R14-M	T-fitting · Other connectors
NPFC-T-G14-2R14-FMM	T-fitting · Other connectors
NPFC-T-2R14-G14-MMF	T-fitting · Other connectors
NPFC-X-4G14-F	X-fitting · Other connectors
NPFC-X-R14-3G14-MFFF	X-fitting · Other connectors
NPFC-D-G18-G14-M	Double nipple · Other connectors
NPFC-D-2G14-M	Double nipple · Other connectors
NPFC-D-R18-R14-M	Double nipple · Other connectors
NPFC-D-2R14-M	Double nipple · Other connectors
NPFC-S-2G14-F	Coupling sleeve · Other connectors
NPFC-E1-2G14-FM	Extension · Other connectors
NPFC-E2-2G14-FM	Extension · Other connectors
NPFC-E3-2G14-FM	Extension · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NPFC-D-2G14-M-P100	Double nipple · Other connectors
NPFC-R-G38-G14-F	Reducing coupling · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
NPFC-R-G34-G14-MF	Reducing nipple · Other connectors
NPFC-H-G14-F	Bulkhead fitting · Other connectors
NPFC-DS-G14-G14-M	Double nipple · Other connectors
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
DARP-M12P-F	Self-aligning rod coupler · Stainless-steel piston-rod attachments
