How can I get a price quote for FESTO CRQSL-1/4-10?

You can request a fast quote for FESTO CRQSL-1/4-10 from Yılsa Engineering. Reference part number CEY-937FC7823FB9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CRQSL-1/4-10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CRQSL-1/4-10 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CRQSL-1/4-10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

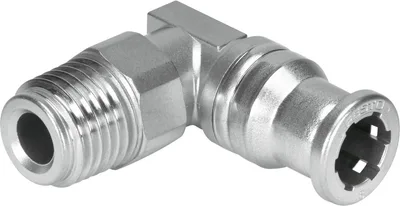

FESTO CRQSL-1/4-10

Push-in L-fitting. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. Food grade see www.festo.com/certificates/CRQS. Operating media: compressed air, vacuum, (water). Stainless steel. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FESTOMFR # CRQSL-1/4-10SKU # CEY-937FC7823FB9

SizeStandard

Nominal size6

Tubing insertion depth25.5

Mounting positionAny

DesignL-shape

Size of pack1

Have questions?Chat on WhatsApp

About This Product

FESTO CRQSL-1/4-10

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size6

Tubing insertion depth25.5

Mounting positionAny

DesignL-shape

Size of pack1

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC4 - Very high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Suitable for use with foodSee supplementary material information

Ambient temperature-15, 120

Product weight42

Suitable cablesPFAN

Type of mountingExternal hex SW17

Pneumatic connection, port 1Male thread R1/4

Pneumatic connection, port 2For tubing outside diameter of 10 mm

Colour of release ringSilver

Material screwed plugHigh-alloy stainless steel

Note on materialsRoHS compliant

Material housingHigh-alloy stainless steel

Material release ringHigh-alloy stainless steel

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialHigh-alloy stainless steel

Accessories 40

Genuine accessories that can be used with the FESTO CRQSL-1/4-10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PFAN-10X1,5-NT	Plastic tubing · Tubes
PLN-10X1,5-NT	Plastic tubing · Tubing
PLN-10X1,5-SW	Plastic tubing · Tubing
PUN-H-10X1,5-NT	Plastic tubing · Tubing
PUN-H-10X1,5-BL	Plastic tubing · Tubing
PUN-H-10X1,5-SW	Plastic tubing · Tubing
PLN-10X1,5-BL	Plastic tubing · Tubing
PLN-10X1,5-SI	Plastic tubing · Tubing
PLN-10X1,5-RT	Plastic tubing · Tubing
PUN-H-10X1,5-SW-300	Plastic tubing · Tubing
PUN-H-10X1,5-BL-300	Plastic tubing · Tubing
PUN-H-10X1,5-NT-300	Plastic tubing · Tubing
PUN-H-10X1,5-SI-300	Plastic tubing · Tubing
PUN-H-10X1,5-SI	Plastic tubing · Tubing
PUN-H-10X1,5-RT	Plastic tubing · Tubing
PUN-H-10X1,5-GN	Plastic tubing · Tubing
PUN-H-10X1,5-GE	Plastic tubing · Tubing
PUN-H-10X1,5-TBL	Plastic tubing · Tubing
PUN-H-10X1,5-TBL-300	Plastic tubing · Tubing
PUN-H-10X1,5-TSW	Plastic tubing · Tubing
PUN-H-10X1,5-TSW-300	Plastic tubing · Tubing
PUN-H-10X1,5-TRT	Plastic tubing · Tubing
PUN-H-10X1,5-TRT-300	Plastic tubing · Tubing
PUN-H-10X1,5-TGN	Plastic tubing · Tubing
PUN-H-10X1,5-TGN-300	Plastic tubing · Tubing
PUN-H-10X1,5-TGE	Plastic tubing · Tubing
PUN-H-10X1,5-TGE-300	Plastic tubing · Tubing
PUN-H-F-10X1,5-RT	Plastic tubing · Tubing
PUN-H-F-10X1,5-BL	Plastic tubing · Tubing
PUN-H-F-10X1,5-TBL	Plastic tubing · Tubing
PUN-H-F-10X1,5-GN	Plastic tubing · Tubing
PUN-H-F-10X1,5-GE	Plastic tubing · Tubing
PUN-H-F-10X1,5-SW	Plastic tubing · Tubing
PUN-H-F-10X1,5-NT	Plastic tubing · Tubing
PUN-H-SF-10X2-BL	Plastic tubing · Tubing
PUN-H-SF-10X2-SW	Plastic tubing · Tubing
PUN-H-10X1,5-BL-25	Plastic tubing · Tubing
PUN-H-10X1,5-SW-25	Plastic tubing · Tubing
PUN-H-10X1,5-RT-25	Plastic tubing · Tubing
PUN-H-10X1,5-TBL-25	Plastic tubing · Tubing
