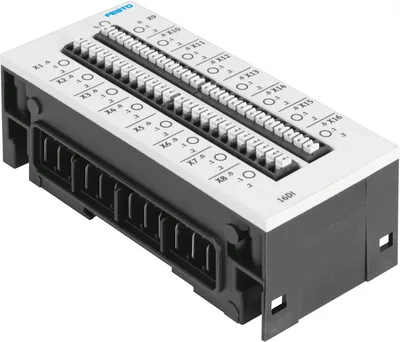

FESTO CPX-L-16DE-16-KL-3POL
Input module. Individual components for the electrical terminal CPX
Dimensions (W x L x H)50 mm x 107 mm x 41 mm
Product weight167
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionIP20
Corrosion resistance class CRC(installed)
About This Product
Input module. Individual components for the electrical terminal CPX
FESTO CPX-L-16DE-16-KL-3POL
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimensions (W x L x H)50 mm x 107 mm x 41 mm
Product weight167
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionIP20
Corrosion resistance class CRC(installed)
LABS (PWIS) conformityVDMA24364-B2-L
Approvalc UL us - Listed (Oil)
Note on materialsRoHS compliant
Material housingReinforced PA
LED display1 Group diagnostics, 16 Channel status
DiagnosisShort circuit/overload per channel
ParameterisationInput debounce time, Signal extension time, Behaviour after short circuit, Module monitoring
Operational voltage range DC18, 30
Nominal operating voltage DC24
Intern power consumption nominal operating voltageTyp. 15 mA
Number of inputs16
Characteristic for inputsIEC1131-T2, type 01
Switching levelSignal 0: <= 5 V, Signal 1: ≥ 15 V
Switching logic for inputsPNP (positive switching)
Input debounce time3 ms (0.1 ms, 10 ms, 20 ms, parameterisable)
Max. residual current of inputs per module1.8
Isolation channel - channelNo
Isolation channel - internal busNo
Fuse protection (short circuit)Internal electronic fuse per module
