How can I get a price quote for Festo CPX-FB39?

You can request a fast quote for Festo CPX-FB39 from Yılsa Engineering. Reference part number YLSPZFZ0SOSC3NY. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-FB39 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-FB39 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-FB39?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

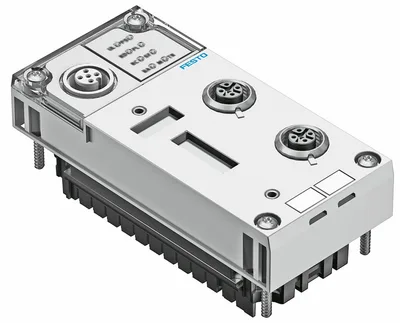

Festo CPX-FB39

Bus node. Individual components for the electrical terminal CPX

FestoMFR # CPX-FB39SKU # YLSPZFZ0SOSC3NY

ProtocolSercos III

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight125

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Have questions?Chat on WhatsApp

About This Product

Bus node. Individual components for the electrical terminal CPX

Festo CPX-FB39

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolSercos III

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight125

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Material housingReinforced PA

LED display, product-specificM: Modify, parameterisation, PL: Load supply, PS: Electronics supply, sensor supply, SF: System errors

LED display, bus-specificS: Sercos LED, SD: Sercos sub-device LED, TP1: Network active port 1, TP2: Network active port 2

Device-specific diagnosticsChannel-oriented and module-oriented diagnostics, Undervoltage of modules, Diagnostics memory

Operator controlsDIL switch

Field bus interface2x socket, M12x1, 4-pin, D-coded

Max. address volume, inputs64

Max. address volume, outputs64

ParameterisationDiagnostic behaviour, Fallback output data, Forcing of channels, Signal setup, System parameters

Baud rate100 Mbit/s, full/half duplex

Configuration supportSDDML file

Additional functionsAcyclic and cyclic data access via Sercos, IP addressing via Sercos parameters or operator unit, Channel-oriented diagnostics via fieldbus, Start-up parameterisation in plain text via fieldbus, System

Operational voltage range DC18, 30

Nominal operating voltage DC24

Intern power consumption nominal operating voltageTyp. 100 mA

Accessories 5

Genuine accessories that can be used with the Festo CPX-FB39 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ISK-M12	Cover cap · General accessories
AK-SUB-9/15-B	Inspection cover · General accessories
CPX-ST-1	Inscription label holder · General accessories
NECU-M-S-D12G4-C2-ET	Plug · Electrical accessories
NEFC-M12G5-0.3-U1G5	Adapter · Electrical accessories
