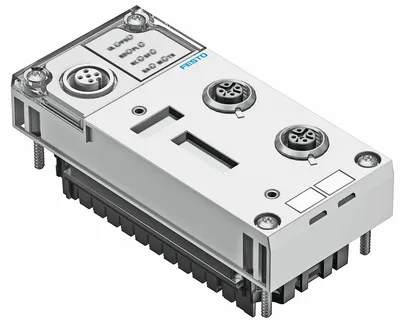

Festo CPX-FB37

Bus node. Individual components for the electrical terminal CPX

FestoMFR # CPX-FB37SKU # YLSON4G57L4U3M

ProtocolEtherCAT®

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight125

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Have questions?Chat on WhatsApp

About This Product

Bus node. Individual components for the electrical terminal CPX

Festo CPX-FB37

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

ProtocolEtherCAT®

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight125

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Note on materialsRoHS compliant

Material housingReinforced PA

LED display, product-specificM: Modify, parameterisation, PL: Load supply, PS: Electronics supply, sensor supply, SF: System errors

LED display, bus-specificError: Communication error, LA X1: Network active port 1, LA X2: Network active port 2, Run: Communication status

Device-specific diagnosticsChannel-oriented and module-oriented diagnostics, Undervoltage of modules, Diagnostics memory

Operator controlsDIL switch

Field bus interface2x socket, M12x1, 4-pin, D-coded

Max. address volume, inputs128

Max. address volume, outputs128

ParameterisationDiagnostic behaviour, Fail-safe response, Forcing of channels, Signal setup, System parameters

Baud rate100 Mbit/s

Configuration supportESI file

Additional functionsAcyclic data access via fieldbus, Diagnostics object, Emergency message, Compatibility mode for the FB38, Modular device profile (MDP), System status can be mapped using process data, Variable PDO map

Operational voltage range DC18, 30

Nominal operating voltage DC24

Intern power consumption nominal operating voltageTyp. 100 mA

Accessories 5

Genuine accessories that can be used with the Festo CPX-FB37 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ISK-M12	Cover cap · General accessories
AK-SUB-9/15-B	Inspection cover · General accessories
CPX-ST-1	Inscription label holder · General accessories
NECU-M-S-D12G4-C2-ET	Plug · Electrical accessories
NEFC-M12G5-0.3-U1G5	Adapter · Electrical accessories
