How can I get a price quote for Festo CPX-AP-I-CCB-M12?

You can request a fast quote for Festo CPX-AP-I-CCB-M12 from Yılsa Engineering. Reference part number YLSSWKVYBDIJNV. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-AP-I-CCB-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-AP-I-CCB-M12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-AP-I-CCB-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

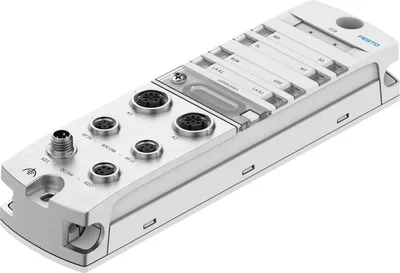

Festo CPX-AP-I-CCB-M12

CC-Link IE Field Basic interface. Decentralised and lightweight I/O system in IP65/IP67. Highly flexible remote IO system with maximum performance. Can be expanded and easily combined with CPX-AP-I and CPX-AP-A to form an integrated system. Seamless connectivity along with advanced diagnostics option increase the machine availability and productivity. Easy to integrate into the control system of your choice: PROFINET, EtherCAT®, EtherNet/IP, ModbusTCP, CC-LINK®. Module for IO-Link® available. Powerful remote I/O system that flexibly links 80 modules at a data rate of 200 Mbaud in real-time. Cable lengths of up to 50 m between every module enable vast system dimensions. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # CPX-AP-I-CCB-M12SKU # YLSSWKVYBDIJNV

Dimensions (W x L x H)45 mm x 170 mm x 35 mm

Max. number of modules80

Product weight186

Ambient temperature-20, 60

Storage temperature-40, 70

Relative air humidity5 - 95%, Non-condensing

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-I-CCB-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)45 mm x 170 mm x 35 mm

Type of mountingOn DIN rail via accessories, With through-hole

Max. number of modules80

Product weight186

Ambient temperature-20, 60

Storage temperature-40, 70

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65, IP67

Note on degree of protectionUnused connections sealed

Corrosion resistance class CRC1 - Low corrosion stress

Max. cable length50 m system communication

Note on max. cable lengthPower supply according to nominal voltage

LABS (PWIS) conformityVDMA24364-B2-L

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC, To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Note on materialsRoHS compliant

Material housingPA, Makrolon®, Nickel-plated die-cast zinc

Material o-ringFluoro rubber

Diagnostics via LEDCC-Link IE Field Basic RUN, Diagnostics per module, Power supply, electronics/sensors, Load power supply, System diagnostics, Maintenance required

Diagnostics via busAPDD invalid, Switch-off load supply, Communication with AP module interrupted, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Diagnostics per internal communicationModule error, Output short circuit/overload, Short circuit/overload in sensor supply, Load supply undervoltage

Fieldbus interfaceEthernet

Field bus, protocolEtherCAT®

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection type2x socket

Field bus, connection systemM12x1, D-coded to EN 61076-2-101

Field bus, connection pattern4

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Max. address volume, inputs1024

Max. address volume, outputs1024

Configuration supportCSPP file
