How can I get a price quote for Festo CPX-AP-I-16DI-M12-5P?

You can request a fast quote for Festo CPX-AP-I-16DI-M12-5P from Yılsa Engineering. Reference part number YLSXGDH2ZJTMWYG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-AP-I-16DI-M12-5P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-AP-I-16DI-M12-5P genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-AP-I-16DI-M12-5P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

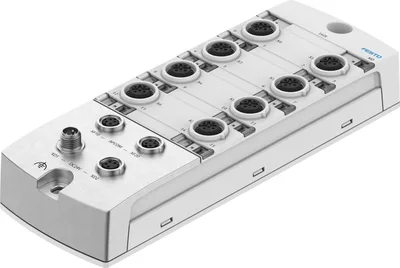

Festo CPX-AP-I-16DI-M12-5P

Digital input module. Decentralised and lightweight I/O system in IP65/IP67. Highly flexible remote IO system with maximum performance. Can be expanded and easily combined with CPX-AP-I and CPX-AP-A to form an integrated system. Seamless connectivity along with advanced diagnostics option increase the machine availability and productivity. Easy to integrate into the control system of your choice: PROFINET, EtherCAT®, EtherNet/IP, ModbusTCP, CC-LINK®. Module for IO-Link® available. Powerful remote I/O system that flexibly links 80 modules at a data rate of 200 Mbaud in real-time. Cable lengths of up to 50 m between every module enable vast system dimensions. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # CPX-AP-I-16DI-M12-5PSKU # YLSXGDH2ZJTMWYG

Dimensions (W x L x H)60 mm x 170 mm x 35 mm

Product weight216

Ambient temperature-20, 60

Storage temperature-40, 70

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65, IP67

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-I-16DI-M12-5P

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)60 mm x 170 mm x 35 mm

Type of mountingOn DIN rail via accessories, With through-hole

Product weight216

Ambient temperature-20, 60

Storage temperature-40, 70

Relative air humidity5 - 95%, Non-condensing

Degree of protectionIP65, IP67

Note on degree of protectionUnused connections sealed

Corrosion resistance class CRC1 - Low corrosion stress

Max. cable length30 m inputs, 50 m system communication

Note on max. cable lengthPower supply according to nominal voltage

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Element installed statically, no meaningful evaluation possible according to ISO 14644-1

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Certificate issuing authorityUL E239998

Note on materialsRoHS compliant

Material housingPA, Makrolon®, Nickel-plated die-cast zinc

Material o-ringFluoro rubber

Diagnostics via LEDDiagnostics per module, Status per channel

Diagnostics per internal communicationShort circuit/overload in sensor supply, Electronics/sensors overvoltage, Electronics/sensors undervoltage

Communication interface, functionSystem communication XF10 IN / XF20 OUT

Communication interface, connection type2x socket

Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114

Communication interface, number of pins/cores4

Communication interface, protocolAP

Communication interface, screenedYes

Power supply, functionIncoming electronics/sensors and load

Power supply, connection typePlug

power supply, connection systemM8x1, A-coded to EN 61076-2-104

Power supply, number of pins/wires4

Power transmission, functionOutgoing electronics/sensors and load

Power transmission, connection typeSocket

Power transmission, connection technologyM8x1, A-coded to EN 61076-2-104

Power transmission, number of pins/wires4

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Max. power supply2 x 4 A (external fuse required)

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 38 mA

Power failure bridging10

Reverse polarity protectionYes

Electrical connection input, functionDigital input

Electrical connection input, connection type8x socket

Electrical connection input, connector systemM12x1, A-coded to EN 61076-2-101

Electrical connection input, number of connections/cores5

Number of inputs16

Characteristic for inputsTo IEC 61131-2, type 3

Switching levelSignal 0: <= 5 V, Signal 1: ≥ 11 V

Switching logic for inputsPNP (positive switching), 2-wire sensors to IEC 61131-2, 3-wire sensors to IEC 61131-2

Input debounce time0.1 ms, 3 ms, 10 ms, 20 ms

Fuse protection of inputs (short circuit)Internal electronic fuse per module

Max. residual current of inputs per module1.8

Electrical isolation of inputs between channelsNo

Electrical isolation of inputs between channel – internal communicationYes
