How can I get a price quote for Festo CPX-AP-A-SB-F?

You can request a fast quote for Festo CPX-AP-A-SB-F from Yılsa Engineering. Reference part number YLSFBHVRO0JO16. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-AP-A-SB-F in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-AP-A-SB-F genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-AP-A-SB-F?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

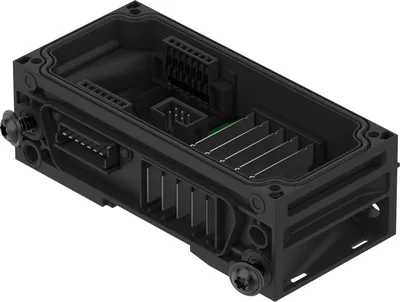

Festo CPX-AP-A-SB-F

Interlinking module

FestoMFR # CPX-AP-A-SB-FSKU # YLSFBHVRO0JO16

Dimensions (W x L x H)50.1 mm x 107.3 mm x 35 mm

Grid dimension50.1

Product weight99

Mounting positionAny, on H-rail: horizontal

Ambient temperature-20, 50

Storage temperature-20, 70

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-A-SB-F (Interlinking module) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo CPX-AP-A-SB-F — price, stock availability and technical specifications.

Festo CPX-AP-A-SB-F

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50.1 mm x 107.3 mm x 35 mm

Grid dimension50.1

Type of mountingOn DIN rail via accessories, With through-hole for M5 screw with accessories, With through-hole for M6 screw with accessories

Product weight99

Mounting positionAny, on H-rail: horizontal

Ambient temperature-20, 50

Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation height> 2000 m ASL (< 79.5 kPa), Observe ambient temperature derating according to IEC 61131-2:2017

Corrosion resistance class CRC1 - Low corrosion stress

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG1 on DIN rail, SG2 on direct mounting, Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistance30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection classIII

Overvoltage categoryII

LABS (PWIS) conformityVDMA24364-B2-L

Fire test materialUL94 V-0 (housing)

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Material housingReinforced PA

Material screwsNickel-plated steel

Material sealsPolyurethane foam

Note on nominal operating voltage DCProtected Extra-Low-Voltage to IEC 60204-1

Nominal operating voltage DC of load24

Nominal DC operating voltage, electronics/sensors24

Accessories 2

Genuine accessories that can be used with the Festo CPX-AP-A-SB-F motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
