How can I get a price quote for Festo CPX-AP-A-PN-M12?

You can request a fast quote for Festo CPX-AP-A-PN-M12 from Yılsa Engineering. Reference part number YLSAVLQYITZXK. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-AP-A-PN-M12 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-AP-A-PN-M12 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-AP-A-PN-M12?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

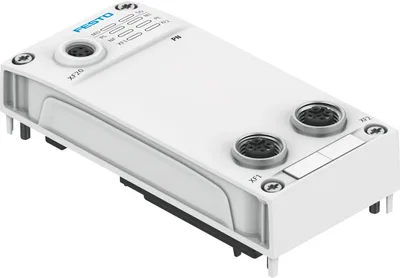

Festo CPX-AP-A-PN-M12

PROFINET Interface

FestoMFR # CPX-AP-A-PN-M12SKU # YLSAVLQYITZXK

Dimensions (W x L x H)50.1 mm x 107.3 mm x 57.5 mm

Grid dimension50.1

Type of mountingScrew-clamped

Max. number of modules80

Product weight108

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-A-PN-M12 (PROFINET Interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo CPX-AP-A-PN-M12 — price, stock availability and technical specifications.

Festo CPX-AP-A-PN-M12

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50.1 mm x 107.3 mm x 57.5 mm

Grid dimension50.1

Type of mountingScrew-clamped

Max. number of modules80

Product weight108

Mounting positionAny

Ambient temperature-20, 50

Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation heightObserve ambient temperature derating according to IEC 61131-2:2017

Corrosion resistance class CRC1 - Low corrosion stress

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG1 on DIN rail, SG2 on direct mounting, Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistance30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection classIII

Pollution degree2

Overvoltage categoryII

Max. cable length100 m PROFINET

LABS (PWIS) conformityVDMA24364-B2-L

Fire test materialUL94 V-0 (housing)

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Material coverReinforced PBT

Material screwsNickel-plated steel

Material threaded sleeveHigh-alloy stainless steel

Material o-ringFluoro rubber

Diagnostics via LEDDiagnostics per module, PROFINET communication, Power supply, electronics/sensors, Load power supply, System diagnostics, Maintenance required

Diagnostics via busAPDD invalid, Switch-off load supply, Communication error, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Fieldbus interfaceEthernet

Field bus, protocolLLDP, MRP, MRPD (ring redundancy), PROFINET FSU, PROFINET I&M0 .. 3, PROFINET IRT, PROFINET RT, PROFINET shared device, S2 system redundancy, SNMP

Fieldbus interface, functionBus connection incoming/outgoing

Field bus, connection type2x socket

Field bus, connection systemM12x1, D-coded to EN 61076-2-101

Fieldbus interface, connection pattern00995716

Field bus, connection pattern4

Field bus interface, electrical isolationYes

Field bus interface, transmission rate100 Mbit/s

Fieldbus interface, note on transmission rate100 Mbit, fast switching Ethernet

Max. address volume, inputs1024

Max. address volume, outputs1024

Module parametersConfiguration of voltage monitoring load supply PL

Internal cycle time< 1 ms

Configuration supportGSDML file

Communication interface, functionSystem communication XF20 OUT

Communication interface, connection typeSocket

Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114

Communication interface, number of pins/cores4

Communication interface, plug pattern00995937

Communication interface, protocolAP

Communication interface, screenedYes

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Note on nominal operating voltage DCProtected Extra-Low-Voltage to IEC 60204-1

Nominal operating voltage DC of load24

Permissible voltage fluctuation of load±25%

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 80 mA

Intrinsic current consumption at nominal operating voltage loadTypically 4 mA

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Reverse polarity protectionYes

Accessories 8

Genuine accessories that can be used with the Festo CPX-AP-A-PN-M12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ISK-M12	Cover cap · General accessories
NEBC-D12G4-ES-3-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-5-S-D12G4-ET	Connecting cable · Connecting cables
NECU-M-S-D12G4-C2-ET	Plug · Electrical accessories
NEBC-D12G4-ES-0.5-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-1-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-D12G4-ES-10-S-D12G4-ET	Connecting cable · Connecting cables
NEBC-LE4-ES-5-D12G4-ET	Connecting cable · Connecting cables
