How can I get a price quote for Festo CPX-AP-A-EPLI-S?

You can request a fast quote for Festo CPX-AP-A-EPLI-S from Yılsa Engineering. Reference part number YLSDJGELWGBHAL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-AP-A-EPLI-S in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-AP-A-EPLI-S genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-AP-A-EPLI-S?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

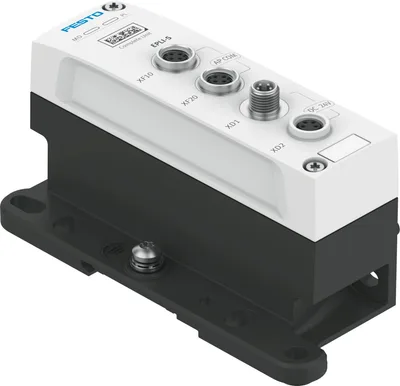

Festo CPX-AP-A-EPLI-S

End plate

FestoMFR # CPX-AP-A-EPLI-SSKU # YLSDJGELWGBHAL

Dimensions (W x L x H)48.4 mm x 117.2 mm x 61.5 mm

Product weight256

Mounting positionAny, on H-rail: horizontal

Ambient temperature-20, 50

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-A-EPLI-S (End plate) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo CPX-AP-A-EPLI-S — price, stock availability and technical specifications.

Festo CPX-AP-A-EPLI-S

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)48.4 mm x 117.2 mm x 61.5 mm

Type of mountingOn DIN rail via accessories, On mounting frame, Via through-hole for M5 screw, Via through-hole for M6 screw

Product weight256

Mounting positionAny, on H-rail: horizontal

Ambient temperature-20, 50

Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation heightObserve ambient temperature derating according to IEC 61131-2:2017

Corrosion resistance class CRC1 - Low corrosion stress

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG1 on DIN rail, SG2 on direct mounting, Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistance30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection classIII

Pollution degree2

Overvoltage categoryII

Max. cable length50 m system communication

LABS (PWIS) conformityVDMA24364-B2-L

Fire test materialUL94 V-0 (housing)

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Material housingCoated die-cast aluminium

Material coverReinforced PBT

Material screwsNickel-plated steel, Galvanised steel

Material sealsPolyurethane foam

Material o-ringFluoro rubber

Diagnostics via LEDDiagnostics per module, Power supply, electronics/sensors, Load power supply

Diagnostics per internal communicationCommunication error, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Communication interface, functionSystem communication XF10 IN / XF20 OUT

Communication interface, connection type2x socket

Communication interface, connection technologyM8x1, D-coded according to EN 61076-2-114

Communication interface, number of pins/cores4

Communication interface, plug pattern00995937

Communication interface, protocolAP

Communication interface, screenedYes

Power supply, functionIncoming electronics/sensors and load

Power supply, connection typePlug

power supply, connection systemM8x1, A-coded to EN 61076-2-104

Power supply, connection pattern00991171

Power supply, number of pins/wires4

Power transmission, functionOutgoing electronics/sensors and load

Power transmission, connection typeSocket

Power transmission, connection technologyM8x1, A-coded to EN 61076-2-104

Power transmission, number of pins/wires4

Power transmission, plug pattern00991872

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Note on nominal operating voltage DC2x24 V [XD1,PS,PL], Protected Extra-Low-Voltage to IEC 60204-1

Nominal operating voltage DC of load24

Permissible voltage fluctuation of load±25%

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Power supply, conductor diameter0.5

Nominal current4

Max. power supply2 x 4 A (external fuse required)

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 41 mA

Intrinsic current consumption at nominal operating voltage loadTypically 3 mA

Power failure bridging10

Potential separation between the supply voltages electronics/sensor technology aYes

Reverse polarity protectionYes

Accessories 4

Genuine accessories that can be used with the Festo CPX-AP-A-EPLI-S motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CAFM-X5-A	Mounting bracket · Mounting accessories
CAFM-X5-K	Mounting bracket · Mounting accessories
CAFM-X5-H	Mounting · Mounting accessories
NRH-35-2000	DIN mounting rail · Mounting accessories
