How can I get a price quote for Festo CPX-AP-A-8DO-PI?

You can request a fast quote for Festo CPX-AP-A-8DO-PI from Yılsa Engineering. Reference part number YLSN9JQEMGXIKJO. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CPX-AP-A-8DO-PI in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CPX-AP-A-8DO-PI genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CPX-AP-A-8DO-PI?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

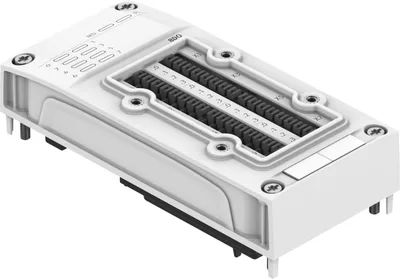

Festo CPX-AP-A-8DO-PI

Digital output module

FestoMFR # CPX-AP-A-8DO-PISKU # YLSN9JQEMGXIKJO

Dimensions (W x L x H)50.1 mm x 107.3 mm x 57.5 mm

Grid dimension50.1

Type of mountingScrew-clamped

Product weight98

Mounting positionAny

Ambient temperature-20, 50

Have questions?Chat on WhatsApp

About This Product

Festo CPX-AP-A-8DO-PI (Digital output module) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo CPX-AP-A-8DO-PI — price, stock availability and technical specifications.

Festo CPX-AP-A-8DO-PI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50.1 mm x 107.3 mm x 57.5 mm

Grid dimension50.1

Type of mountingScrew-clamped

Product weight98

Mounting positionAny

Ambient temperature-20, 50

Note on ambient temperatureObserve ambient temperature derating according to IEC 61131-2:2017

Storage temperature-20, 70

Relative air humidity5 - 95%, Non-condensing

Nominal altitude of use<= 2000 m ASL (> 79.5 kPa)

Max. installation height3500

Note on max. installation heightObserve ambient temperature derating according to IEC 61131-2:2017

Corrosion resistance class CRC1 - Low corrosion stress

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Note on vibration resistanceSG1 on DIN rail, SG2 on direct mounting, Transport application test with severity class 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Note on shock resistance30 g/11 ms to EN 60068-2-27, SG1 on DIN rail, SG2 on direct mounting, Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Protection classIII

Pollution degree2

Overvoltage categoryII

Max. cable length30 m outputs

LABS (PWIS) conformityVDMA24364-B2-L

Fire test materialUL94 V-0 (housing)

Note on materialsRoHS compliant, Free of halogen, Free of phosphoric acid ester

Material coverReinforced PBT

Material screwsNickel-plated steel

Material o-ringFluoro rubber

Diagnostics via LEDDiagnostics per channel, Diagnostics per module, Load power supply, Status per channel

Diagnostics per internal communicationCommunication error, Short-circuit/overload in output signal, Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage

Max. address volume, outputs1

Number of outputs8

Module parametersConfiguration of voltage monitoring load supply PL, Behaviour after short circuit/overload at analogue output

Communication interface, protocolAP

Note regarding operating voltageSELV/PELV fixed power supplies required, Note the voltage drop

Note on nominal operating voltage DCProtected Extra-Low-Voltage to IEC 60204-1

Nominal operating voltage DC of load24

Permissible voltage fluctuation of load±25%

Nominal DC operating voltage, electronics/sensors24

Permissible voltage fluctuations for electronics/sensors±25%

Intrinsic current consumption at nominal operating voltage for electronics/sensoTypically 40 mA

Intrinsic current consumption at nominal operating voltage loadTypically 5 mA
