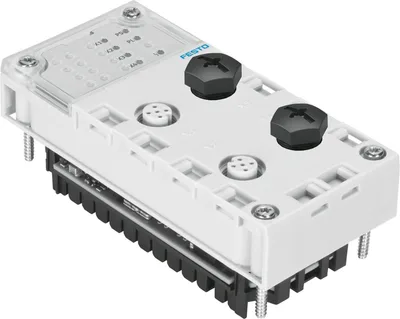

CPX-CTEL-2-M12-5POL-LK
MFR #CPX-CTEL-2-M12-5POL-LK
SKU #YLSHKATQISCVYSQ
Photo may not represent actual item. Refer to name and product specs for all details.

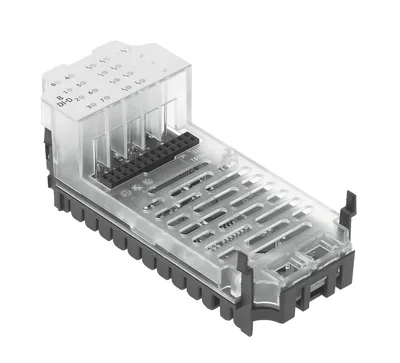

FESTO CPX-8DE-D
Input module. Individual components for the electrical terminal CPX
Dimensions (W x L x H)50 mm x 107 mm x 50 mm
Product weight45
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionDepending on the connection block
Corrosion resistance class CRC(installed)
About This Product
Input module. Individual components for the electrical terminal CPX
FESTO CPX-8DE-D
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimensions (W x L x H)50 mm x 107 mm x 50 mm
Product weight45
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionDepending on the connection block
Corrosion resistance class CRC(installed)
LABS (PWIS) conformityVDMA24364-B2-L
Material housingMakrolon®
LED display1 Group diagnostics, 8 Channel diagnostics, 8 Channel status
DiagnosisShort circuit/overload per channel
ParameterisationInput debounce time, Signal extension time, Behaviour after short circuit, Module monitoring
Operational voltage range DC18, 30
Nominal operating voltage DC24
Intern power consumption nominal operating voltageTyp. 15 mA
Number of inputs8
Characteristic for inputsIEC 1131-T2
Switching levelSignal 0: <= 5 V, Signal 1: ≥ 11 V
Switching logic for inputsPNP (positive switching)
Input debounce time3 ms (0.1 ms, 10 ms, 20 ms, parameterisable)
Max. residual current of inputs per module0.7
Isolation channel - channelNo
Isolation channel - internal busNo
Fuse protection (short circuit)Internal electronic fuse per channel
Related Products
View Details
Festo

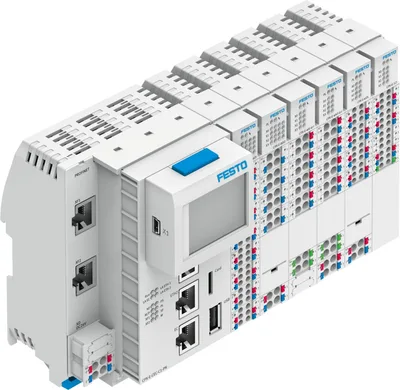

CPX-E
MFR #CPX-E
SKU #YLS8TN5RGSLW1II
View Details
Festo

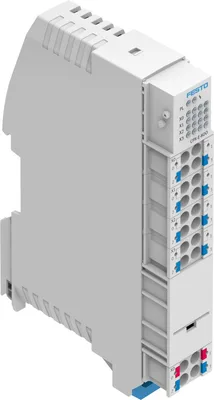

CPX-E-8DO
MFR #CPX-E-8DO
SKU #YLSIQXEYRQRIHJ
View Details
Festo

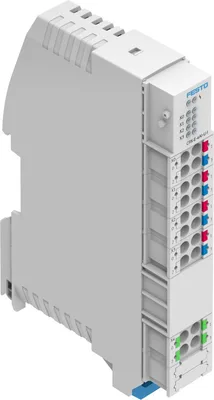

CPX-E-4AI-U-I
MFR #CPX-E-4AI-U-I
SKU #YLSV0SF0EXVLEKO
View Details
Festo

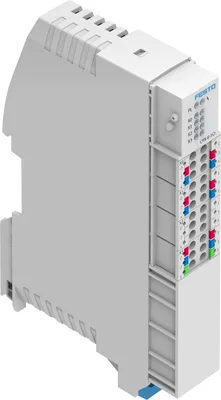

CPX-E-1CI
MFR #CPX-E-1CI
SKU #YLST8BEMMPOFKWP
View Details
Festo

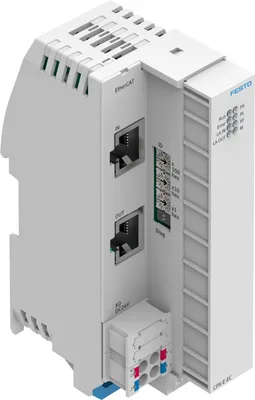

CPX-E-EC
MFR #CPX-E-EC
SKU #YLSV3RDJNMQKFV
View Details
Festo

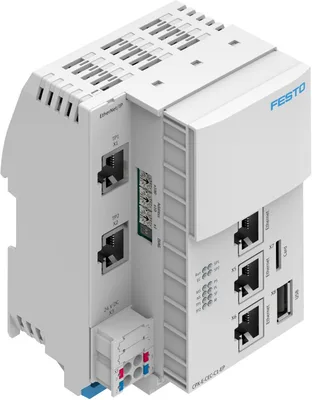

CPX-E-CEC-M1-EP
MFR #CPX-E-CEC-M1-EP
SKU #YLSRZ5RSIQ5UFK
View Details
Festo
CPX-E-CEC-C1-EP
MFR #CPX-E-CEC-C1-EP
SKU #YLS8UUREVRXTNOG
View Details
Festo
CPX-E-EP
MFR #CPX-E-EP
SKU #YLSYZDT78JEQITU
View Details
Festo

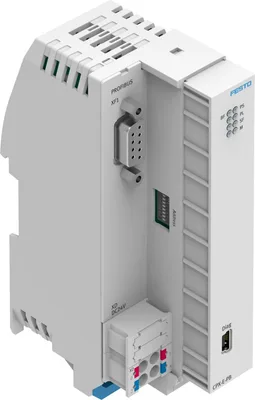

CPX-E-PB
MFR #CPX-E-PB
SKU #YLSUJEZBNPQNNRR
Featured Products
View Details
SMC

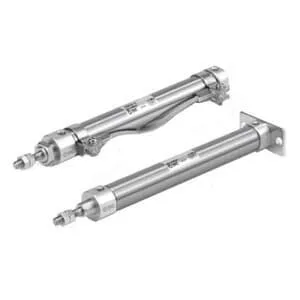

CDJ2L16-125Z-B
