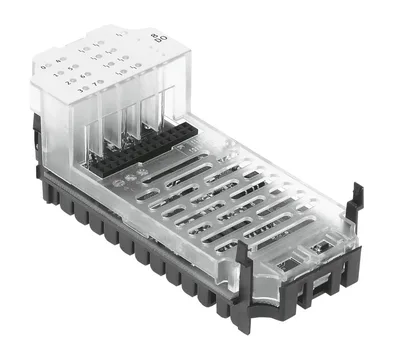

FESTO CPX-8DA
Output module. Individual components for the electrical terminal CPX
Dimensions (W x L x H)50 mm x 107 mm x 50 mm
Product weight49
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionDepending on the connection block
Corrosion resistance class CRC(installed)
About This Product
Output module. Individual components for the electrical terminal CPX
FESTO CPX-8DA
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimensions (W x L x H)50 mm x 107 mm x 50 mm
Product weight49
Ambient temperature-5, 50
Storage temperature-20, 70
Degree of protectionDepending on the connection block
Corrosion resistance class CRC(installed)
LABS (PWIS) conformityVDMA24364-B2-L
Material housingMakrolon®
LED display1 Group diagnostics, 8 Channel diagnostics, 8 Channel status
DiagnosisShort circuit/overload per channel, Undervoltage of outputs
Number of outputs8
ParameterisationFail-safe per channel, Forcing per channel, Idle mode per channel, Behaviour after short circuit, Module monitoring
Operational voltage range DC18, 30
Nominal operating voltage DC24
Intern power consumption nominal operating voltageTyp. 16 mA
Characteristic for outputsIEC 1131-T2
Switching logic for outputsPNP (positive switching)
Max. residual current outputs per module4
Max. power supply per channel0.5 A (12 W lamp load)
Isolation channel - channelNo
Isolation channel - internal busYes, with intermediate air supply
Fuse protection (short circuit)Internal electronic fuse per channel
