How can I get a price quote for FESTO CPX-4AE-TC?

You can request a fast quote for FESTO CPX-4AE-TC from Yılsa Engineering. Reference part number CEY-937FC781E106. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CPX-4AE-TC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CPX-4AE-TC genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CPX-4AE-TC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

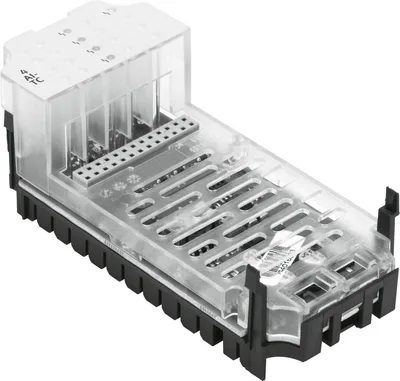

FESTO CPX-4AE-TC

Analogue module. Individual components for the electrical terminal CPX

FESTOMFR # CPX-4AE-TCSKU # CEY-937FC781E106

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight46

Ambient temperature-5, 50

Storage temperature-20, 70

Corrosion resistance class CRC(installed)

Max. cable length50 M, Shielded

Have questions?Chat on WhatsApp

About This Product

Analogue module. Individual components for the electrical terminal CPX

FESTO CPX-4AE-TC

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight46

Ambient temperature-5, 50

Storage temperature-20, 70

Corrosion resistance class CRC(installed)

Max. cable length50 M, Shielded

LABS (PWIS) conformityVDMA24364-B2-L

Material housingMakrolon®

LED display1 Group diagnostics, 4 Channel diagnostics

DiagnosisWire break per channel, Limit value violation per channel, Parameterisation error

ParameterisationLimit monitoring per channel, Cold-junction compensation, Unit of measurement, Measured value smoothing, Sensor type per channel, Wire break monitoring per channel

Internal cycle time250 ms

Operational voltage range DC18, 30

Nominal operating voltage DC24

Intern power consumption nominal operating voltage30 mA

Number of inputs4

Max. line resistance10 ohm/conductor

Data format15 bits + prefix, Binary notation in tenths of a degree

Repetition accuracy0.05% at 25°C

Basic error limit at 25 °C±0.4 %

Operating error limit related to the ambient temperature range±0.6 %

Sensor typeType B, Type E, Type J, Type K, Type N, Type R, Type S, Type T

Isolation channel - channelNo

Isolation channel - internal busYes

Fuse protection (short circuit)Internal electronic fuse per channel

Accessories 3

Genuine accessories that can be used with the FESTO CPX-4AE-TC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-M12G8-KD-3-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-2-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-5-M12G4	Connecting cable · Electrical accessories
