How can I get a price quote for FESTO CPX-4AE-I?

You can request a fast quote for FESTO CPX-4AE-I from Yılsa Engineering. Reference part number CEY-937FC781F70D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CPX-4AE-I in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CPX-4AE-I genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CPX-4AE-I?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

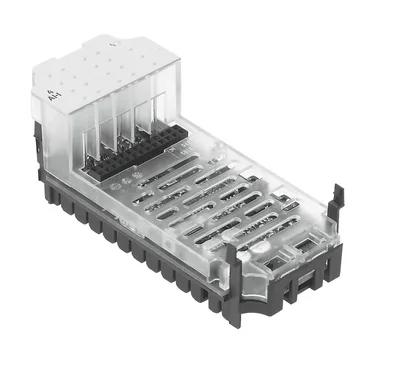

FESTO CPX-4AE-I

Analogue module. Individual components for the electrical terminal CPX

FESTOMFR # CPX-4AE-ISKU # CEY-937FC781F70D

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight47

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionDepending on the connection block

Corrosion resistance class CRC(installed)

Have questions?Chat on WhatsApp

About This Product

Analogue module. Individual components for the electrical terminal CPX

FESTO CPX-4AE-I

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight47

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionDepending on the connection block

Corrosion resistance class CRC(installed)

Max. cable length30 M, Shielded

LABS (PWIS) conformityVDMA24364-B2-L

Material housingMakrolon®

LED display1 Group diagnostics

DiagnosisWire break per channel, Limit value violation per channel, Short circuit input signal, Parameterisation error

ParameterisationData format, Forcing per channel, Limit monitoring per channel, Measured value smoothing, Signal range per channel, Behaviour after short circuit, Wire break monitoring per channel

Internal cycle time10 ms

Operational voltage range DC18, 30

Nominal operating voltage DC24

Intern power consumption nominal operating voltageTyp. 50 mA

Number of inputs4

Data format12 bits + prefix, Scalable to 15 bits

Repetition accuracy0.15% at 25°C

Basic error limit at 25 °C±0.5 %

Operating error limit related to the ambient temperature range±0.6 %

Sensor type0 - 20 mA, 4 - 20 mA

Isolation channel - channelNo

Isolation channel - internal busYes, without using the internal sensor supply

Fuse protection (short circuit)Internal electronic fuse

Accessories 3

Genuine accessories that can be used with the FESTO CPX-4AE-I motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-M12G8-KD-3-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-2-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-5-M12G4	Connecting cable · Electrical accessories
