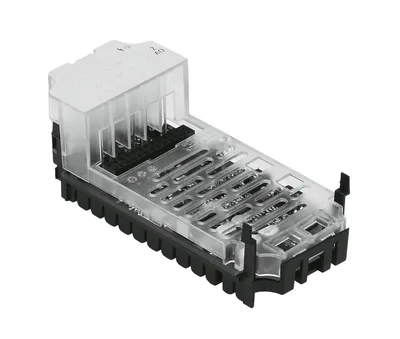

Festo CPX-2AA-U-I

Analogue module. Individual components for the electrical terminal CPX

FestoMFR # CPX-2AA-U-ISKU # CEY-937FC7820FF7

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight49

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionDepending on the connection block

Corrosion resistance class CRC(installed)

Have questions?Chat on WhatsApp

About This Product

Analogue module. Individual components for the electrical terminal CPX

Festo CPX-2AA-U-I

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimensions (W x L x H)50 mm x 107 mm x 50 mm

Product weight49

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionDepending on the connection block

Corrosion resistance class CRC(installed)

Max. cable length30 M, Shielded

LABS (PWIS) conformityVDMA24364-B2-L

Material housingMakrolon®

LED display1 Group diagnostics

DiagnosisWire break per channel, Limit value violation per channel, Short circuit of output signal per channel, Short circuit of actuator supply, Parameterisation error, Undervoltage of outputs

Number of outputs2

ParameterisationData format, Fail-safe per channel, Forcing per channel, Limit monitoring per channel, Idle mode per channel, Measured value smoothing, Signal range per channel, Behaviour after short circuit, Wire br

Internal cycle time4 ms

Operational voltage range DC18, 30

Nominal operating voltage DC24

Intern power consumption nominal operating voltageTyp. 100 mA

Data format12 bits + prefix, Scalable to 15 bits

Repetition accuracy0.05% at 25°C

Basic error limit at 25 °C±0.5 %

Operating error limit related to the ambient temperature range±0.6 %

Sensor type0 - 10 V, 0 - 20 mA, 4 - 20 mA

Isolation channel - channelNo

Isolation channel - internal busYes, without using the internal sensor supply

Fuse protection (short circuit)Internal electronic fuse

Accessories 3

Genuine accessories that can be used with the Festo CPX-2AA-U-I motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-M12G8-KD-3-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-2-M12G4	Connecting cable · Electrical accessories
NEBV-M12G8-K-5-M12G4	Connecting cable · Electrical accessories
