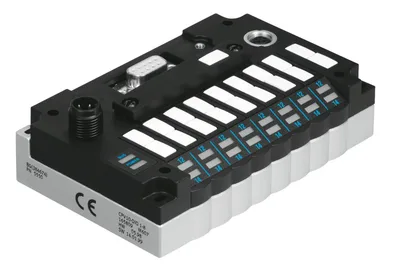

Festo CPV14-GE-DI01-8
Electrical interface
CP string expansionYes, 16 inputs, 8 outputs (or 16 valves)
Types of communicationCyclic communication
Configuration supportGSD file and bitmaps
Max. number of valve coils16
Reverse polarity protectionFor all electrical connections
Operational voltage range DC20.4, 26.4
About This Product
Festo CPV14-GE-DI01-8 (Electrical interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo CPV14-GE-DI01-8 — price, stock availability and technical specifications.
Festo CPV14-GE-DI01-8
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
CP string expansionYes, 16 inputs, 8 outputs (or 16 valves)
Field bus interfaceEither:, Socket and plug, M12x1, 5-pin, B-coded, Sub-D, 9-pin, socket
Device-specific diagnosticsVia device-specific diagnostics (DPV0), Missing module on CP string extension, Short circuit/overload, outputs, Undervoltage of outputs, Undervoltage of sensor supply, Undervoltage of valves
Types of communicationCyclic communication
Configuration supportGSD file and bitmaps
Max. number of valve coils with string expansion32
Max. number of valve coils16
Reverse polarity protectionFor all electrical connections
Baud rate9.6 kBaud ... 12 MBaud, Automatic detection
Operational voltage range DC20.4, 26.4
Max. number of outputs(16 solenoid coils omitted), 8
Max. number of inputs16
Nominal operating voltage DC24
Power failure bridging10
Residual ripple4 Vss
Current consumption at nominal operating voltage, loadDepending on valve type
Current consumption at nominal operating voltageElectronics: <= 100 mA, Sensor supply: dependent on sensor
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-20, 70
Degree of protectionIP65
Ambient temperature-5, 50
Approvalc UL us - Recognised (Oil)
Product weight351
Addressing range1 ... 125, Set using switch module
Fieldbus certificationPNO
Electrical isolation fieldbus interfaceOptocoupler
LED display, bus-specificBUS: Communication and configuration errors
LED display, product-specific12/14: Valve switching status, POWER: Operating voltage for electronics and load supply
Product identificationProduct family: 4: Valves
Material coverReinforced PA
Material sealsCR, NBR
Material housingDie-cast aluminium
Note on materialsRoHS compliant
