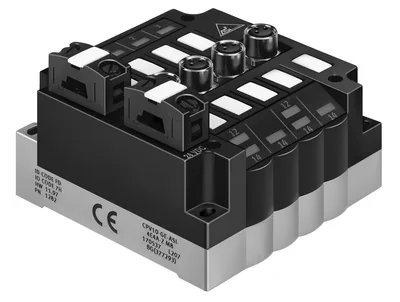

Festo CPV10-GE-ASI-4E4A-Z-M8-CE

Electrical interface

FestoMFR # CPV10-GE-ASI-4E4A-Z-M8-CESKU # CEY-937FC7828738

Device-specific diagnosticsShort circuit/overload of inputs

Max. number of valve positions4

Max. number of valve coils4

Number of slaves per device1

Operating voltage DC AS-interface26.5, 31.6

Debounce time for inputs3

Have questions?Chat on WhatsApp

About This Product

Festo CPV10-GE-ASI-4E4A-Z-M8-CE (Electrical interface) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Festo CPV10-GE-ASI-4E4A-Z-M8-CE — price, stock availability and technical specifications.

Festo CPV10-GE-ASI-4E4A-Z-M8-CE

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Field bus interfaceAS-Interface: flat cable plug, Load voltage: flat cable plug

Device-specific diagnosticsShort circuit/overload of inputs

Max. number of valve positions4

Max. number of valve coils4

Reverse polarity protectionFor all electrical operating voltage connections

Number of slaves per device1

Operating voltage DC AS-interface26.5, 31.6

Debounce time for inputs3

Note on load voltageVia load voltage connection (24 V DC)

Load voltage range DC21.6, 26.4

Max. number of inputs4

Nominal DC operating voltage, AS-interface26.5

Nominal load voltage DC24

Residual ripple, AS interface20 mVss

Residual ripple, load voltage4 Vss

Switching levelSignal 0: <= 5 V, Signal 1: ≥ 11 V

Current consumption with load supply from AS-interface connection and load voltaInputs: 200 mA, Electronics: 20 mA, Valves: 115 mA (depending on valve type)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 70

Relative air humidityNon-condensing

Degree of protectionIP65, In mounted state

Ambient temperature-5, 50

Product weight151

Characteristic for inputsaccording to IEC 1131-2, type 02

Switching logic for inputsPNP (positive switching)

Addressing range1A ... 31A (0), 1B ... 31B, Set using AS-Interface addressing device

Electrical isolation fieldbus interfaceOptocoupler

LED display, bus-specificAS-i: AS-Interface operation, Aux/Pwr: AS-Interface power supply, Fault: AS-Interface error
