How can I get a price quote for FESTO CP-E16-M8-EL?

You can request a fast quote for FESTO CP-E16-M8-EL from Yılsa Engineering. Reference part number CEY-937FC7828484. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO CP-E16-M8-EL in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO CP-E16-M8-EL genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO CP-E16-M8-EL?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

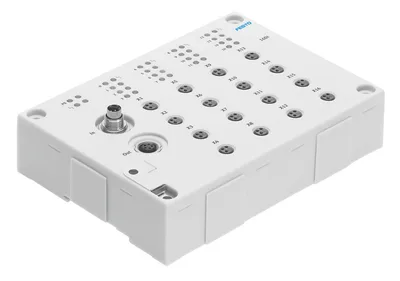

FESTO CP-E16-M8-EL

Input module

FESTOMFR # CP-E16-M8-ELSKU # CEY-937FC7828484

Type of mountingWith through-hole, via DIN rail

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Have questions?Chat on WhatsApp

About This Product

FESTO CP-E16-M8-EL (Input module) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for FESTO CP-E16-M8-EL — price, stock availability and technical specifications.

FESTO CP-E16-M8-EL

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Type of mountingWith through-hole, via DIN rail

Ambient temperature-5, 50

Storage temperature-20, 70

Degree of protectionIP65, IP67

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

KC markKC-EMV

ApprovalRCM, c UL us - Listed (Oil)

Note on materialsRoHS compliant

Material housingReinforced PA

Material coverReinforced PA

LED display16 Channel status, 2 Module diagnostics, 4 Group diagnostics

Max. number of inputs16

Operational voltage range DC18, 30

Nominal operating voltage DC24

Operating voltage DC load voltage24

Residual ripple, load voltage4 Vss

Characteristic for inputsIEC 1131-T2

Switching levelSignal 0: <= 6 V, Signal 1: ≥ 8.6 V

Switching logic for inputsPNP (positive switching)

Input debounce time3 ms (0.5 ms, 10 ms, 20 ms, parameterisable)

Max. total current per module0.7

Isolation channel - channelNo

Fuse protection (short circuit)Internal electronic fuse protection for each group

Accessories 4

Genuine accessories that can be used with the FESTO CP-E16-M8-EL motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NECB-S-M12G4-C2-D	Plug · Electrical accessories
NECB-S-M12G5-C2-D	Plug · Electrical accessories
NRH-35-2000	DIN mounting rail · Mounting accessories
ASCF-H-E2	Inscription label holder · General accessories
