How can I get a price quote for Festo CDC-20- -?

You can request a fast quote for Festo CDC-20- - from Yılsa Engineering. Reference part number YLSWJF6KRAFIJ2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo CDC-20- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo CDC-20- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo CDC-20- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

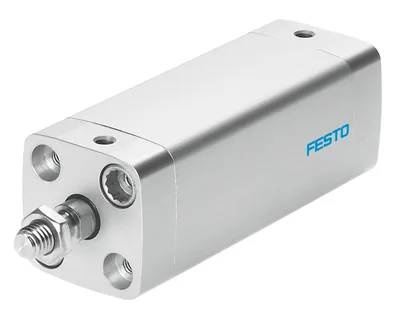

Festo CDC-20- -

Compact cylinder. ISO 21287. Up to 50% less installation space than comparable standards-based cylinders to ISO 15552. Easy-to-clean design. Increased corrosion protection. Wide range of variants for customised applications. Piston rod with female or male thread. For position sensing

FestoMFR # CDC-20- -SKU # YLSWJF6KRAFIJ2

Stroke1, 300

Piston diameter20 mm

Based on standardISO 21287

Mounting positionAny

DesignPiston, Piston rod

Operating pressure0.08, 1

Have questions?Chat on WhatsApp

About This Product

Festo CDC-20- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke1, 300

Piston diameter20 mm

Based on standardISO 21287

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

DesignPiston, Piston rod

VariantsExtended male piston rod thread, Custom thread on the piston rod, Extended piston rod, Through piston rod, Heat-resistant seals max. 120°C, Piston rod at one end

Operating pressure0.08, 1

Operating pressure0.8, 10

Mode of operationDouble-acting

CE mark (see declaration of conformity)To EU EMC Directive

UKCA marking (see declaration of conformity)To UK instructions for EMC

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L, VDMA24364 zone III

Suitable for use with foodSee supplementary material information

Ambient temperature-20, 120

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke141

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke141, 188

Type of mountingWith through-hole, With female thread

Pneumatic connectionM5

Material coverWrought aluminium alloy, anodised

Material piston rodHigh-alloy stainless steel

Material cylinder barrelWrought aluminium alloy, anodised

Accessories 25

Genuine accessories that can be used with the Festo CDC-20- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
HNA-20-R3	Foot mounting · Cylinder mountings
CRSG-M8	Rod clevis · Piston-rod attachments
CRSGS-M8	Rod eye · Piston-rod attachments
SNCL-20-R3	Swivel flange · Cylinder mountings
NPQR-DK-M5-Q4	Push-in fitting · Fittings
PUN-H-F-4X0,75-NT	Plastic tubing · Tubes
NPQR-L-M5-Q4	Push-in fitting · Fittings
PUN-H-F-4X0,75-BL	Plastic tubing · Tubes
SMT-C1-PS-24V-K-5,0-OE	Proximity sensor · Proximity sensors
PUN-H-F-4X0,75-TBL	Plastic tubing · Tubes
SMT-C1-PS-24V-K-0,3-M8D	Proximity sensor · Proximity sensors
PUN-H-F-4X0,75-SW	Plastic tubing · Tubes
CRGRLA-M5-B	One-way flow control valve · Function fittings
NPQH-L-M5-Q4-P10	Push-in L-fitting · Push-in fittings
NPQH-L-M5-Q6-P10	Push-in L-fitting · Push-in fittings
NPQH-D-M5-Q4-P10	Push-in fitting · Push-in fittings
NPQH-D-M5-Q6-P10	Push-in fitting · Push-in fittings
NPQH-DK-M5-Q4-P10	Push-in fitting · Push-in fittings
NPQH-T-M5-Q4-P10	Push-in T-fitting · Push-in fittings
NPQH-T-M5-Q6-P10	Push-in T-fitting · Push-in fittings
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
NPFC-DS-M5-M5-M	Double nipple · Other connectors
