How can I get a price quote for Festo AEN-S-40-25-I-P?

You can request a fast quote for Festo AEN-S-40-25-I-P from Yılsa Engineering. Reference part number YLSEK6MCB8COEB0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo AEN-S-40-25-I-P in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo AEN-S-40-25-I-P genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo AEN-S-40-25-I-P?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

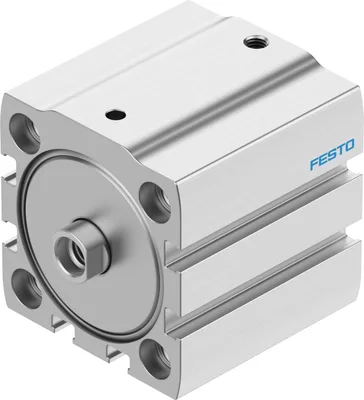

Festo AEN-S-40-25-I-P

Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. High forces in a compact size. Piston rod with female or male thread. For position sensing

FestoMFR # AEN-S-40-25-I-PSKU # YLSEK6MCB8COEB0

Stroke25

Piston diameter40 mm

Mounting positionAny

Mode of operationSingle-acting

Piston-rod endFemale thread

DesignPiston, Piston rod

Have questions?Chat on WhatsApp

About This Product

Compact cylinder. Minimal installation space. Very lightweight. Ideal for small movements. High forces in a compact size. Piston rod with female or male thread. For position sensing

Festo AEN-S-40-25-I-P

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke25

Piston diameter40 mm

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

Mode of operationSingle-acting

Piston-rod endFemale thread

DesignPiston, Piston rod

Symbol00991729

VariantsAdditional PTFE piston guide

Operating pressure0.1, 1

Operating pressure1, 10

Operating pressure14.5, 145

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Ambient temperature0, 80

Impact energy in end positions0.32

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke54

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754

Moving mass for 0 mm stroke56

Additional moving mass per 10 mm stroke9

Basic weight for 0 mm stroke186

Additional weight per 10 mm stroke45

Type of mountingEither:, With through-hole, With female thread, With accessories

Pneumatic connectionM5

Note on materialsRoHS compliant

Material coverAnodised wrought aluminium alloy

Material dynamic sealsNBR

Material housingAnodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 39

Genuine accessories that can be used with the Festo AEN-S-40-25-I-P motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CRZNG-40	Trunnion flange · Cylinder mountings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
GRLZ-M5-B	One-way flow control valve · Function fittings
GRLZ-M5-RS-B	One-way flow control valve · Function fittings
AD-M10X1,25-1/8	Adapter · Piston rod attachments
AD-M10X1,25-1/4	Adapter · Piston rod attachments
FNC-40	Flange mounting · Cylinder mountings
SNCB-40	Swivel flange · Cylinder mountings
SNCS-40	Swivel flange · Cylinder mountings
SNCL-40	Swivel flange · Cylinder mountings
ZNCF-40	Trunnion flange · Cylinder mountings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLZ-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLZ-M5-QS-4-LF-C	One-way flow control valve · Function fittings
MSK-M10X1,25	Hex nut · Piston rod attachments
GRLZ-M5-QS-3-D	One-way flow control valve · Function fittings
GRLZ-M5-QS-4-D	One-way flow control valve · Function fittings
GRLZ-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
SGS-M10X1,25	Rod eye · Piston rod attachments
KSZ-M10X1,25	Coupling piece · Piston rod attachments
KSG-M10X1,25	Coupling piece · Piston rod attachments
HNA-40	Foot mounting · Cylinder mountings
DPNA-40	Multi-position kit · Cylinder mountings
FK-M10X1,25	Self-aligning rod coupler · Piston rod attachments
SG-M10X1,25	Rod clevis · Piston rod attachments
VFOE-LS-T-M5-Q4	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q6	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-M5-Q4-F1A	One-way flow control valve · Function fittings
