How can I get a price quote for Enerpac ZG5310MX-R?

You can request a fast quote for Enerpac ZG5310MX-R from Yılsa Engineering. Reference part number CEY-55221B1180C2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac ZG5310MX-R in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac ZG5310MX-R genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac ZG5310MX-R?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

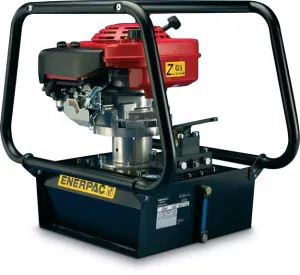

Enerpac ZG5310MX-R 700 bar Gas Hydraulic Pump

Enerpac ZG5310MX-R; 700 bar (10,000 psi), 9.5 L usable oil, 3/3 manual valve, two-speed gas-powered hydraulic pump with 7.1 ft.lbs Honda motor.

EnerpacMFR # ZG5310MX-RSKU # CEY-55221B1180C2

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

Dimension D384 mm (15.1 in)

Dimension C305 mm (12 in)

Maximum Operating Pressure700 bar (10,000 psi)

Output Flow Rate @ 50 bar10,7 l/min

Have questions?Chat on WhatsApp

About This Product

ZG5310MX-R is a two-speed, gas-powered hydraulic pump from the ZG5 series. It has a maximum operating pressure of 700 bar (10,000 psi), 9.5 L (2.5 gal) of usable oil and a 3-way, 3-position, tandem center manual valve. The pump is driven by a 7.1 ft.lbs Honda motor and delivers 10.7 L/min at 50 bar, 11.5 L/min at 7 bar and 1.6 L/min at 700 bar. The relief valve is adjustable from 70 to 700 bar, and the sound level is 88-93 dBA.

Features and Benefits

Z-Class high-efficiency pump design with higher oil flow and bypass pressure
Two-speed operation reduces cycle time for improved productivity
Full-sight oil level glass for quick and easy oil level monitoring
700 bar (10,000 psi) maximum pressure; relief valve adjustable 70-700 bar
3/3 manual valve with advance / hold / retract function
7.1 ft.lbs Honda 4-cycle gasoline engine

Enerpac ZG5310MX-R

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range700 bar (10,000 psi)

Country of OriginUnited States

Dimension D384 mm (15.1 in)

Maximum Flow at Rated Pressure1.6 l/min (100 in3/min · 1,6 l/min · 100 in³/min)

Dimension C305 mm (12 in)

Maximum Operating Pressure700 bar (10,000 psi)

Output Flow Rate @ 50 bar10,7 l/min

Valve FunctionAdvance / Hold / Retract

Output Flow Rate at 7 bar11,5 in³/min

Dimension B419 mm (16.5 in)

Usable Oil Capacity10 l (2.5 gal)

Pump ControlManual

Output Flow Rate (100 psi)700 in³/min

Relief Valve Adjustment Range70-700 bar (1,000 - 10,000 psi)

Product TypeGas Pump - High Flow

Reservoir Capacity10000 cm³ (578 in³)

Sound Level88 - 93 dB(A)

Output Flow Rate at 700 bar1,6 in³/min

Valve OperationManual

Pump Valve Type3-way, 3-position, Tandem Center

Output Flow Rate @ 7 bar11,5 l/min

SeriesZG5

Output Flow Rate @ 700 bar1,6 l/min (100 in³/min)

Pump Power SourceGasoline

Flow Rate Range at Rated Pressure0,98 - 1,95 l/min (60 - 119 in³/min)

Output Flow Rate (700 psi)650 in³/min

Motor ManufacturerHonda

Motor Size4,1 kW

Cylinder CompatibilitySingle-acting

Output Flow Rate (5000 psi)110 in³/min

Dimension A155 mm (6.1 in)

Valve ModelVM33

Product LineIndustrial Tools

Motor Size7.1 ft-lbs

Weight52 kg (113.6 lbs)

Output Flow Rate @ 350 bar1,8 l/min

Output Flow Rate at 50 bar10,7 in³/min

Output Flow Rate at 350 bar1,8 in³/min

Documents & CAD

For this product 1

Repair Parts SheetGas PumpPDF·900 KB·English

Series documents 5· shared by this product series

Instruction ManualPump, GasPDF·4.3 MB 4 languages· in one file

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

CertificateEC2B-ZG_RevG_Oct2022PDF·396 KB

BrochureZG-Series Gasoline Hydraulic Pumps; EnglishPDF·417 KB
