How can I get a price quote for Enerpac HC9206?

You can request a fast quote for Enerpac HC9206 from Yılsa Engineering. Reference part number CEY-55221B12D4BC. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac HC9206 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac HC9206 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac HC9206?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

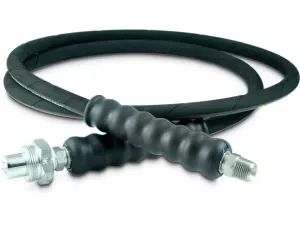

Enerpac HC9206 6 ft Hydraulic Hose

Enerpac HC9206; 6 ft (~1.8 m), 6.4 mm (0.25") ID, 10,000 psi (~690 bar) heavy-duty rubber hydraulic hose with 3/8" NPTF and CH604 ends.

EnerpacMFR # HC9206SKU # CEY-55221B12D4BC

Country of OriginUnited States

End Two CouplerCH604

Length6 ft

Internal Diameter6,4 mm (0.25 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

Have questions?Chat on WhatsApp

About This Product

HC9206 is a 6 ft (~1.8 m) heavy-duty rubber high pressure hydraulic hose from the Enerpac 900 series. It has a 6.4 mm (0.25") internal diameter and a maximum operating pressure of 10,000 psi (~690 bar). One end is 3/8" NPTF and the other is CH604. It has two layers of steel wire braid and a rubber cover; it is flexible with low memory and designed to comply with the IJ-100 specification. Oil capacity is 3.54 in³ (~58 cm³) and weight is 3 lb (~1.4 kg). It is used for repeated, heavy-duty high pressure hydraulic connections and long hose runs.

Features and Benefits

10,000 psi (~690 bar) maximum operating pressure
Rubber hose with two layers of steel wire braid
Flexible, low-memory construction suited to long hose runs
Crimped-on rubber strain relief
Designed to comply with IJ-100 specification

Enerpac HC9206

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

End Two CouplerCH604

Length6 ft

Internal Diameter6,4 mm (0.25 in)

Product TypeHeavy-duty Rubber Hose

Maximum Operating Pressure10,000 psi

SeriesH900

Oil Capacity3.54 in³

Model Type6 ft., 0.25 in Int. Diam., 3/8" NPTF, CH604 Ends

Product LineIndustrial Tools

End One Coupler3/8" NPTF

Weight3 lbs

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualHydraulic Hose / FittingsPDF·386 KB

Instruction ManualHose, HydraulicPDF·4.1 MB 4 languages· in one file

BrochureH700-H900-Series High-Pressure Hydraulic Hoses; EnglishPDF·458 KB

BrochureHigh_Pressure_Hydraulic_Hoses_EN-SGPDF·279 KB·English

CAD Files 3

3D Model
