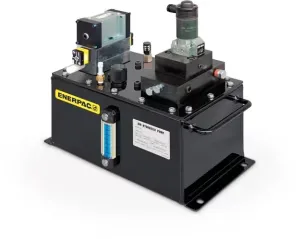

Enerpac ZAJ06505S1C 350 bar Air Pump
Enerpac ZAJ06505S1C; 350 bar, 3.8 litre usable oil, air hydraulic pump with single 3/2 solenoid valve (24 VDC), for single-acting cylinders.
Maximum Operating Pressure Range350 bar (5,000 psi)
Country of OriginJapan
Oil Ports3/8" NPT
Maximum Operating Pressure350 bar (5,000 psi)
Air Pressure Range1,0 - 6,9 bar (15 - 100 psi)
Output Flow Rate (100 psi)124 in³/min
About This Product
The ZAJ06505S1C is a heavy-duty air hydraulic pump from the ZAJ series with a single 3/2 solenoid valve. The valve is 3-way, 2-position and operates on 24 VDC; the pump is used with single-acting cylinders.
Maximum operating pressure is 350 bar (5,000 psi) and usable oil capacity is 3.8 litres (1 gallon). Flow at 138 bar (2,000 psi) is 1.0 L/min (62 in³/min), air pressure range is 1.0–6.9 bar and air consumption is 18 scfm. Oil ports are 3/8" NPT and weight is 22.2 kg.
The steel reservoir includes a sight glass and a mounting flange. The pump suits production and workholding applications.
Features and Benefits
- Single 3/2 solenoid valve (3-way, 2-position), 24 VDC
- Suited for single-acting cylinders
- Heavy-duty air driven pump suited for production applications
- 1-gallon (3.8 L) steel reservoir with sight glass and mounting flange
- 350 bar (5,000 psi) maximum operating pressure, 3/8" NPT oil ports
Enerpac ZAJ06505S1C
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Maximum Operating Pressure Range350 bar (5,000 psi)
Country of OriginJapan
Oil Ports3/8" NPT
Maximum Flow at Rated Pressure1 l/min (62 in3/min · 1,0 l/min · 62 in³/min)
Maximum Operating Pressure350 bar (5,000 psi)
Air Pressure Range1,0 - 6,9 bar (15 - 100 psi)
Output Flow Rate (100 psi)124 in³/min
Reservoir Capacity1 gal
Product TypeAir Pump
Reservoir Capacity3800 cm³ (231 in³)
Output Flow Rate at 2000 psi62 in³/min
Valve OperationSolenoid
Pump Valve Type3-way, 2-position
SeriesZAJ
Pump Power SourceAir
Flow Rate Range at Rated Pressure0,98 - 1,95 l/min (60 - 119 in³/min)
Cylinder CompatibilitySingle-acting
Air Consumption510 l/min (18 scfm)
Solenoid Valve Voltage24 VDC
Product LineWorkholding Tools
Weight22,2 kg (49 lbs)
Usable Oil Capacity3,8 l
