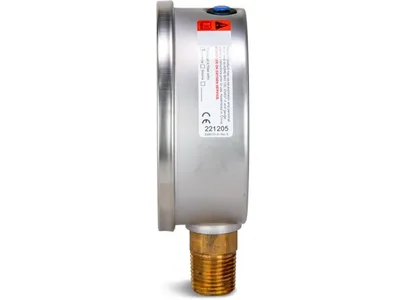

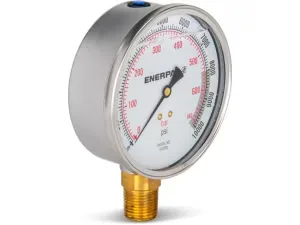

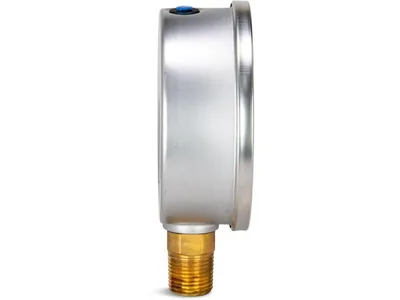

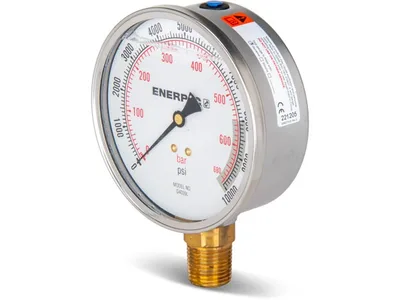

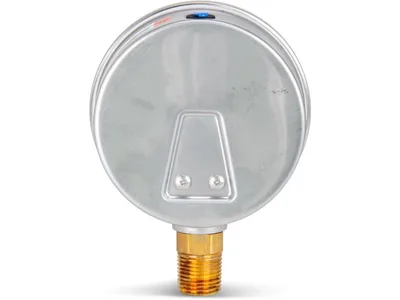

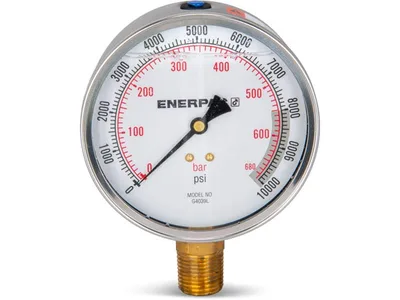

Enerpac G4039L 700 bar Gauge

Enerpac G4039L; 0–700 bar (10,000 psi), 100 mm (4 in) face, 1/2 NPTF lower mount, glycerine-filled hydraulic pressure gauge.

EnerpacMFR # G4039LSKU # CEY-8EF3B0345B43

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginChina

Dimension D136 mm (5.38 in)

Dimension C1/2" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

G4039L is a glycerine-filled hydraulic pressure gauge from the G series. It has a 100 mm (4 in) face, lower mount and a 1/2 NPTF thread connection. Maximum pressure is 700 bar (10,000 psi) and accuracy is 1% of full scale. The dual-scale face shows both psi and bar readings, with a major graduation of 100 bar (1,000 psi) and a minor graduation of 10 bar (100 psi). The glycerine protects the pressure-sensing parts from vibration, sudden pressure changes and moisture. It includes a safety blow-out disk and a pressure-equalizing membrane. It is used to monitor pressure for the safe use of hydraulic tools and equipment. Gauge snubbers or needle valves are recommended for high-cycle applications.

Features and Benefits

100 mm (4 in) face, 0–700 bar (10,000 psi) range
Dual-scale psi and bar calibration; 1% full-scale accuracy
Glycerine fill for long life of pressure-sensing parts
Safety blow-out disk and pressure-equalizing membrane
1/2 NPTF lower mount connection for easy installation
Gauge snubber or needle valve recommended for high-cycle use

Enerpac G4039L

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension EN/A mm

Accuracy (Full Scale)1 %

Country of OriginChina

Dimension D136 mm (5.38 in)

Dimension C1/2" NPTF mm

Maximum Operating Pressure700 bar (10,000 psi)

Dimension B49 mm (1.93 in)

Minor Graduation10 bar (100 psi)

StyleGlycerine Filled

Major Graduation100 bar (1000 psi)

Product TypePressure Gauge

SeriesG

Dimension A100 mm (4 in)

Product LineIndustrial Tools

Port Thread1/2 NPTF

Face Diameter100 mm

MountingLower Mount

Documents & CAD

Series documents 3· shared by this product series

BrochureG-H-Series Hydraulic Pressure Gauges; EnglishPDF·298 KB

BrochureSystem Components & Control ValvesPDF·2.8 MB·English

DocumentGaugePDF·225 KB·English
