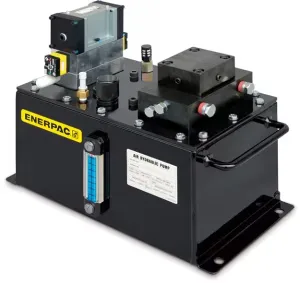

Enerpac ZAJ06505M1 350 bar Air Hydraulic Pump

Enerpac ZAJ06505M1; 350 bar, 3.8 litre usable oil, air hydraulic pump with pressure and tank manifold, 1.0 L/min flow at 138 bar.

EnerpacMFR # ZAJ06505M1SKU # CEY-937FC77C0DB7

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginJapan

Oil Ports3/8" NPT

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,0 - 6,9 bar (15 - 100 psi)

Output Flow Rate (100 psi)124 in³/min

Have questions?Chat on WhatsApp

About This Product

The ZAJ06505M1 is a heavy-duty air hydraulic pump from the ZAJ series, supplied with a pressure and tank manifold. Maximum operating pressure is 350 bar (5,000 psi) and usable oil capacity is 3.8 litres (1 gallon). Flow at 138 bar (2,000 psi) is 1.0 L/min (62 in³/min). Air pressure range is 1.0–6.9 bar, air consumption is 510 L/min (18 scfm) and weight is 22.2 kg. Oil ports are 3/8" NPT. The steel reservoir includes a sight glass and a mounting flange. The pump is well suited to production applications and is used in workholding systems.

Features and Benefits

Heavy-duty air driven pump suited for production applications
Pressure and tank manifold
1-gallon (3.8 L) steel reservoir with sight glass and mounting flange
350 bar (5,000 psi) maximum operating pressure
1.0–6.9 bar air pressure range, 3/8" NPT oil ports

Enerpac ZAJ06505M1

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Maximum Operating Pressure Range350 bar (5,000 psi)

Country of OriginJapan

Oil Ports3/8" NPT

Maximum Flow at Rated Pressure1 l/min (62 in3/min · 1,0 l/min · 62 in³/min)

Maximum Operating Pressure350 bar (5,000 psi)

Air Pressure Range1,0 - 6,9 bar (15 - 100 psi)

Output Flow Rate (100 psi)124 in³/min

Reservoir Capacity1 gal

Product TypeAir Pump

Reservoir Capacity3800 cm³ (231 in³)

Output Flow Rate at 2000 psi62 in³/min

SeriesZAJ

Pump Power SourceAir

Flow Rate Range at Rated Pressure0,98 - 1,95 l/min (60 - 119 in³/min)

Air Consumption510 l/min (18 scfm)

Product LineWorkholding Tools

Weight22,2 kg (49 lbs)

Usable Oil Capacity3,8 l

Documents & CAD

Series documents 3· shared by this product series

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureWorkholding Power Sources, EnglishPDF·2.9 MB
