Enerpac ZA4308MX 700 bar Air Hydraulic Pump

Enerpac ZA4308MX; 700 bar, 6.6 L usable oil, 3.0 kW two-speed air hydraulic pump with 3/3 manual valve (VM32) for single-acting cylinders.

EnerpacMFR # ZA4308MXSKU # YLSVEQWYBIULHL1

Country of OriginUnited States

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar11,0 l/min

Output Flow Rate at 7 bar14,0 in³/min

Dimension D205 mm

Relief Valve Adjustment Range70 - 700 bar

Have questions?Chat on WhatsApp

About This Product

The ZA4308MX is a two-speed air hydraulic pump with Z-Class design. It has a maximum operating pressure of 700 bar, 6.6 L (6,600 cm³) usable oil capacity, 3.0 kW motor size and weighs 34 kg. The VM32 3/3 manual valve is used with single-acting cylinders; the relief valve is adjustable from 70 to 700 bar. Output flow is 14.0 L/min at 7 bar, 11.0 L/min at 50 bar, 1.8 L/min at 350 bar and 1.3 L/min at 700 bar. Air consumption is 2,840 L/min and sound level is 80-95 dBA. The pump is ATEX 95 certified for potentially explosive atmospheres. It suits single-acting cylinder applications where electric power is not available.

Features and Benefits

ATEX 95 certified (94/9/EC) for use in potentially explosive atmospheres
Z-Class high-efficiency pump design with higher oil flow and bypass pressure
Two-speed operation reduces cycle time
User-adjustable built-in relief valve on manual valves (70-700 bar); valve oil ports 3/8" NPTF
Oil level indicators on 4 and 6.6 litre reservoirs; optional heat exchanger

Enerpac ZA4308MX

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Country of OriginUnited States

Maximum Operating Pressure700 bar

Output Flow Rate @ 50 bar11,0 l/min

Output Flow Rate at 7 bar14,0 in³/min

Dimension D205 mm

Relief Valve Adjustment Range70 - 700 bar

Maximum Operating Pressure Range700 bar

Product TypeAir Pump - High Flow

Maximum Flow at Rated Pressure1.3 l/min (1,3 l/min)

Dimension H490 mm

Sound Level80 - 95 dB(A)

Output Flow Rate at 700 bar1,3 in³/min

Valve OperationManual

Output Flow Rate @ 7 bar14,0 l/min

SeriesZA

Motor Size3,0 kW

Output Flow Rate @ 700 bar1,3 l/min

Cylinder CompatibilitySingle-acting

Valve ModelVM32

Product LineIndustrial Tools

Flow Rate Range at Rated Pressure0,98 - 1,95 l/min

Weight34 kg

Reservoir Capacity6600 cm³

Dimension C279 mm

Dimension B203 mm

Air Consumption2840 l/min

Dimension A356 mm

Output Flow Rate @ 350 bar1,8 l/min

Output Flow Rate at 50 bar11,0 in³/min

Output Flow Rate at 350 bar1,8 in³/min

Usable Oil Capacity6,6 l

Documents & CAD

Series documents 3· shared by this product series

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZA4-Series Air Hydraulic Pumps; EnglishPDF·322 KB

Alternative Names & Search Terms

ZA4308MXZA 4308 MXZA-4308MXZA4308 MXza4308mxEnerpac ZA4308MXEnerpac ZA 4308 MXZA4308MX air hydraulic pumpZA4308MX pumpEnerpac ZA seriesEnerpac ZA4 seriesEnerpac Z-Class pumpATEX air hydraulic pump700 bar air hydraulic pumptwo-speed air hydraulic pumpair pump for single-acting cylinders3/3 manual valve hydraulic pump6.6 litre air hydraulic pumpVM32 valve hydraulic pumpair hydraulic pump for explosive atmospheres

Cookie Notice

Enerpac ZA4308MX 700 bar Air Hydraulic Pump

About This Product

Features and Benefits

Enerpac ZA4308MX

Specifications

Documents & CAD

Series documents 3· shared by this product series

Related Products

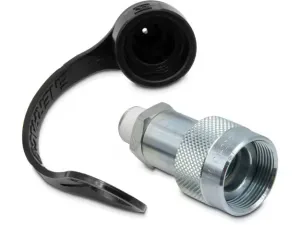

Enerpac CR400 3/8" NPTF Female Coupler

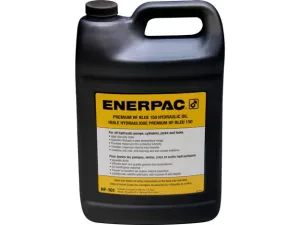

Enerpac HF101 4 L Hydraulic Oil

Enerpac G4039L 700 bar Gauge

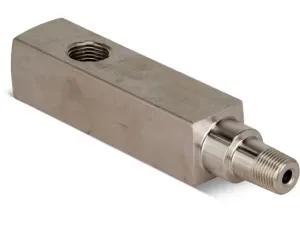

Enerpac GA2 700 bar Gauge Adaptor

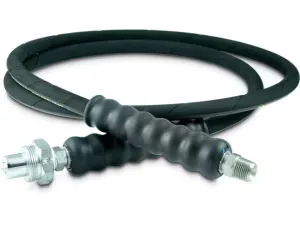

Enerpac HC9206 6 ft Hydraulic Hose
