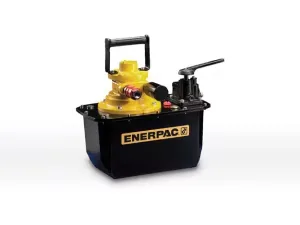

Enerpac ZA4208MX 700 bar Air Hydraulic Pump

Enerpac ZA4208MX; 700 bar (10,000 psi) maximum pressure, 1.75 gallon (≈6.6 L) usable oil, two-speed air hydraulic pump with 3/2 manual valve for single-acting cylinders.

EnerpacMFR # ZA4208MXSKU # CEY-55221B117FB1

Dimension E15.4 in

Maximum Operating Pressure Range10,000 psi

Country of OriginUnited States

Dimension D8.1 in

Maximum Flow at Rated Pressure80 in3/min (80 in³/min)

Dimension C11 in

Have questions?Chat on WhatsApp

About This Product

ZA4208MX is a two-speed air hydraulic pump based on the Z-Class pump platform. It is fitted with a VM32 3-way, 2-position manual valve (advance / retract). Maximum operating pressure is 700 bar (10,000 psi), usable oil capacity is 1.75 gallons (≈6.6 L) and reservoir capacity is 404 in³. Air pressure range is 4.1 - 6.9 bar (60 - 100 psi) and sound level is 94 - 97 dBA. It suits medium to large single-acting cylinders and other hydraulic tools used intermittently where electricity is not available or not allowed.

Features and Benefits

Z-Class high-efficiency pump design with high bypass pressure
Two-speed operation reduces cycle time for improved productivity
VM32 3/2 manual valve for advance / retract control
Two internal relief valves: one for overload protection, one user-adjustable for maximum system pressure
Intermittent duty operation of 20 - 60 minutes at a time
Optional heat exchanger prevents exhaust freezing and cools the oil

Enerpac ZA4208MX

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension E15.4 in

Maximum Operating Pressure Range10,000 psi

Country of OriginUnited States

Dimension D8.1 in

Maximum Flow at Rated Pressure80 in3/min (80 in³/min)

Dimension C11 in

Air Pressure Range60 - 100 psi

Valve FunctionAdvance / Retract

Dimension B5.6 in

Usable Oil Capacity1.75 gal

Output Flow Rate (100 psi)850 in³/min

Product TypeAir Pump - High Flow

Reservoir Capacity404 in³

Sound Level94 - 97 dB(A)

Maximum Operating Pressure10,000 psi

Valve OperationManual

Pump Valve Type3-way, 2-position

SeriesZA

Output Flow Rate @ 10,000 psi80 in³/min

Pump Power SourceAir

Flow Rate Range at Rated Pressure60 - 119 in³/min

Output Flow Rate (700 psi)675 in³/min

Model Type404 in3 Capacity, Single-Acting Compatible, 3/2 Valve

Cylinder CompatibilitySingle-acting

Air Consumption20 - 100 scfm

Output Flow Rate (5000 psi)110 in³/min

Dimension A11.6 in

Valve ModelVM32

Product LineIndustrial Tools

Weight75.7 lbs

Documents & CAD

Series documents 5· shared by this product series

Instruction ManualPump, AirPDF·3.3 MB 4 languages· in one file

Repair Parts SheetAir PumpPDF·1.0 MB·English

CertificateL4895_a_EN_AUPDF·280 KB

CertificateHF_Oil_Safety_Data_Sheet_for_HF102L_HF104L_and_HF105L_Oil_EN-AUPDF·182 KB·English

BrochureZA4-Series Air Hydraulic Pumps; EnglishPDF·322 KB
