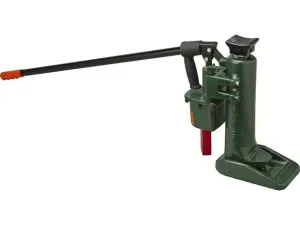

Enerpac TJH109LS 10 ton 228.6 mm Toe Jack

Enerpac TJH109LS; 10 ton (89 kN) capacity, 228.6 mm (9 in) stroke, 18.6 kg heavy duty hydraulic toe jack with pistol grip.

EnerpacMFR # TJH109LSSKU # YLSAO2QOMTMW0RT

Country of OriginUnited States

Minimum Height409,7 mm (16.13 in)

Base Length228,6 mm (9 in)

Capacity89 kN (10 ton)

ApplicationsLifting

Power SourceHydraulic

Have questions?Chat on WhatsApp

About This Product

TJH109LS is a 10 ton (89 kN) capacity, 228.6 mm (9 in) stroke heavy duty hydraulic toe jack from the Simplex TJH series. It is self-contained with spring return. Minimum toe height is 55.1 mm (2.17 in) and minimum capacity height is 409.7 mm (16.13 in). Base dimensions are 228.6 x 152.4 mm and weight is 18.6 kg. Handle effort per ton is given as 33.1 kg (73 lbs). The ergonomic pistol grip allows rapid advancement to the load, and the jack comes with a solid one-piece lever bar. It is used for lifting loads in tight-clearance environments.

Features and Benefits

Ergonomic pistol grip for rapid advancement to load
Solid one-piece lever bar included
Low toe height (55.1 mm) fits tight clearances
18.6 kg weight helps reduce back injuries
Low handle effort (33.1 kg per ton)
Self-contained, spring return design
