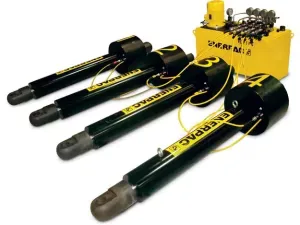

SHS45540MW 220 Ton Manual Synchronous Hoist

Enerpac SHS45540MW; 220 ton capacity, 1000 mm stroke, 4 cylinders, manual control synchronous hoisting system, 400V 50Hz, 700 bar.

EnerpacMFR # SHS45540MWSKU # CEY-55221B11CDB2

Total Load2156 kN (220 ton · 240 ton)

Protective Shroud Diameter (D1)27.17 in

Link Opening E59 mm

Extended Height (B)2800 mm (110.24 in)

Weight per Cylinder625 kg ( 1,378 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The SHS45540MW is a long stroke manual control synchronous hoisting system designed for European 400V 50Hz power supply. Comprised of four 60 ton capacity cylinders delivering 220 ton total load capacity, the system operates at maximum 700 bar with ±1 mm precision over 1000 mm stroke. Manual control allows independent adjustment at each lifting point with integrated sensors providing real-time load and position feedback. Double-acting cylinders with load holding valves ensure safe operation. Compatible with European 400V 50Hz electrical standards, this system is used in industrial applications with significant height variations requiring precise operator control.

Features and Benefits

High precision horizontal and vertical load positioning with ±1 mm accuracy
Manual control system with independent adjustment at each lifting point
Double-acting cylinders with load holding valves for added safety
Extended 1000 mm stroke for wide lifting height applications
Integrated sensors providing real-time position and load feedback
Compliant with European 400V 50Hz electrical standards

Enerpac SHS45540MW

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Total Load2156 kN (220 ton · 240 ton)

Protective Shroud Diameter (D1)27.17 in

Link Opening E59 mm

Extended Height (B)2800 mm (110.24 in)

Weight per Cylinder625 kg ( 1,378 lbs)

Maximum Operating Pressure700 bar (10,000 psi)

Capacity539 kN (55 ton)

Protective Shroud Diameter D1690 mm

ApplicationsLift, Lower

Cylinder Diameter (D2)9.65 in

Motor Size7,5 kW (10 hp)

Collapsed Height (A)1800 mm (70.87 in)

Power Source400 VAC, 3 phase, 50 Hz

Control SystemManual

Product TypeSyncHoist Manual Control

Cylinder Diameter D2245 mm

Link Width J80 mm

Number of Cylinders4

SeriesSHS

Return TypeDouble-Acting, Hydraulic Return

Accuracy Over Full Stroke1 mm (0.04 in)

Oil Flow1,4 l/min (85 in³/min)

Stroke1000 mm (39.37 in)

Link Width (J)3.15 in

Product LineIndustrial Tools

Protective Shroud Height H385 mm

Cylinder Capacity60 ton

Protective Shroud Height (H)15.16 in

Link Opening (E)2.32 in

Number of Pump Outlets4

Documents & CAD

Series documents 4· shared by this product series

Instruction ManualManual SHS Operation and Maintenance ManualPDF·7.8 MB·English

CertificateEC2A-SHS-MANUAL_RevC_June2022PDF·134 KB

BrochureHLT_Heavy_Lifting_Technology_EN-AUPDF·10.5 MB

BrochureSHC-SHP-Series_SyncHoist_Load_Positioning_EN-USPDF·716 KB
