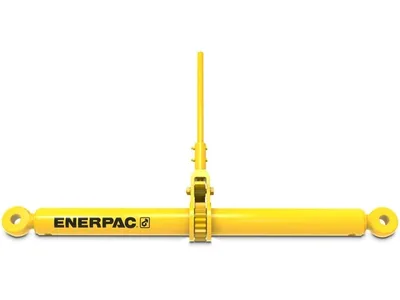

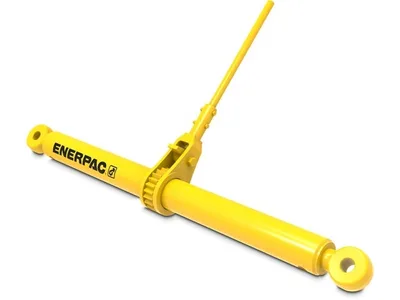

Simplex SER40 20 ton Loadbinder Jack

Enerpac Simplex SER40; 20 ton (177.9 kN) capacity, 965.2 mm (38 in) travel, mechanical loadbinder jack for pulling and pushing.

EnerpacMFR # SER40SKU # CEY-937FC77CB5C3

Dimension G33,3 mm (1.31 in)

Dimension E47,5 mm (1.87 in)

Country of OriginChina

Dimension F19,1 mm (0.75 in)

Dimension D584,2 mm (23 in)

Dimension C1066,8 mm (42 in)

Have questions?Chat on WhatsApp

About This Product

SER40 is a mechanically operated loadbinder jack from the Simplex SER series. It delivers 20 ton (177.9 kN) of pulling or pushing force. It is equipped with a spring activated pawl and integrated handle and can be used in push or pull applications. Travel is 965.2 mm (38 in), barrel length 1066.8 mm (42 in), barrel outside diameter 88.9 mm and screw diameter 50.8 mm. Eye-to-eye distance is 1193.8 mm (47 in) minimum and 2159 mm (85 in) maximum. It is used in bridge construction and steel engineering, for connecting river barges and for pulling forms and steel plates together. The design is CE compliant and meets or exceeds ANSI/ASME B30.1 standards.

Features and Benefits

20 ton (177.9 kN) pulling or pushing force
965.2 mm (38 in) travel length
Spring activated pawl and integrated handle
Can be used in push or pull applications
Suited to bridge construction, steel engineering, barge connecting and pulling forms and plates
CE compliant; meets or exceeds ANSI/ASME B30.1 safety standards

Enerpac SER40

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension G33,3 mm (1.31 in)

Dimension E47,5 mm (1.87 in)

Country of OriginChina

Dimension F19,1 mm (0.75 in)

Dimension D584,2 mm (23 in)

Dimension C1066,8 mm (42 in)

Capacity177,9 kN (20 ton)

Dimension B2159,0 mm (85 in)

Eye to Eye (Minimum)47 in

Power SourceMechanical

Left/Right Screw Eye Inner Diameter33,3 mm (1.31 in)

Travel Length965,2 mm (38 in)

Eye to Eye Maximum85 in

Dimension I88,9 mm (3.5 in)

Barrel Length1066,8 mm (42 in)

Screw Diameter50,8 mm (2 in)

Dimension H44,5 mm (1.75 in)

Pipe Barrel Outside Diameter88,9 mm (3.5 in)

Product TypeLoadbinder Jack

Eye to Eye Minimum1193,8 mm

Left/Right Screw Eye Thickness47,5 mm (1.87 in)

SeriesSER

Radius44,5 mm (1.75 in)

Ratchet Socket Length19,1 mm (0.75 in)

Stroke965.2 mm (38 in)

Model Type20 Imperial Ton Capacity, 38 in. Stroke

Eye to Eye (Maximum)2159,0 mm

Left-Right Screw Length584,2 mm (23 in)

Dimension A1193,8 mm (47 in)

Product LineMechanical Tools

Weight41,7 kg (92 lbs)
